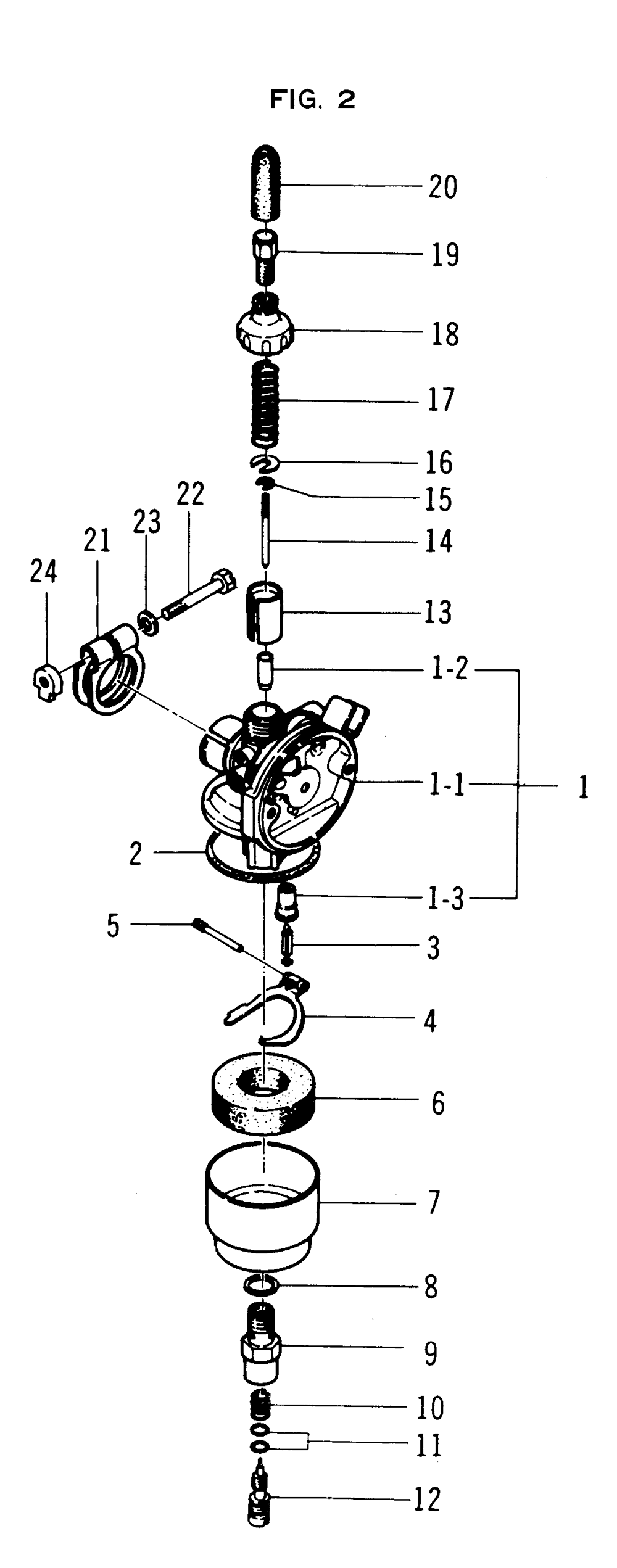

Fig-1

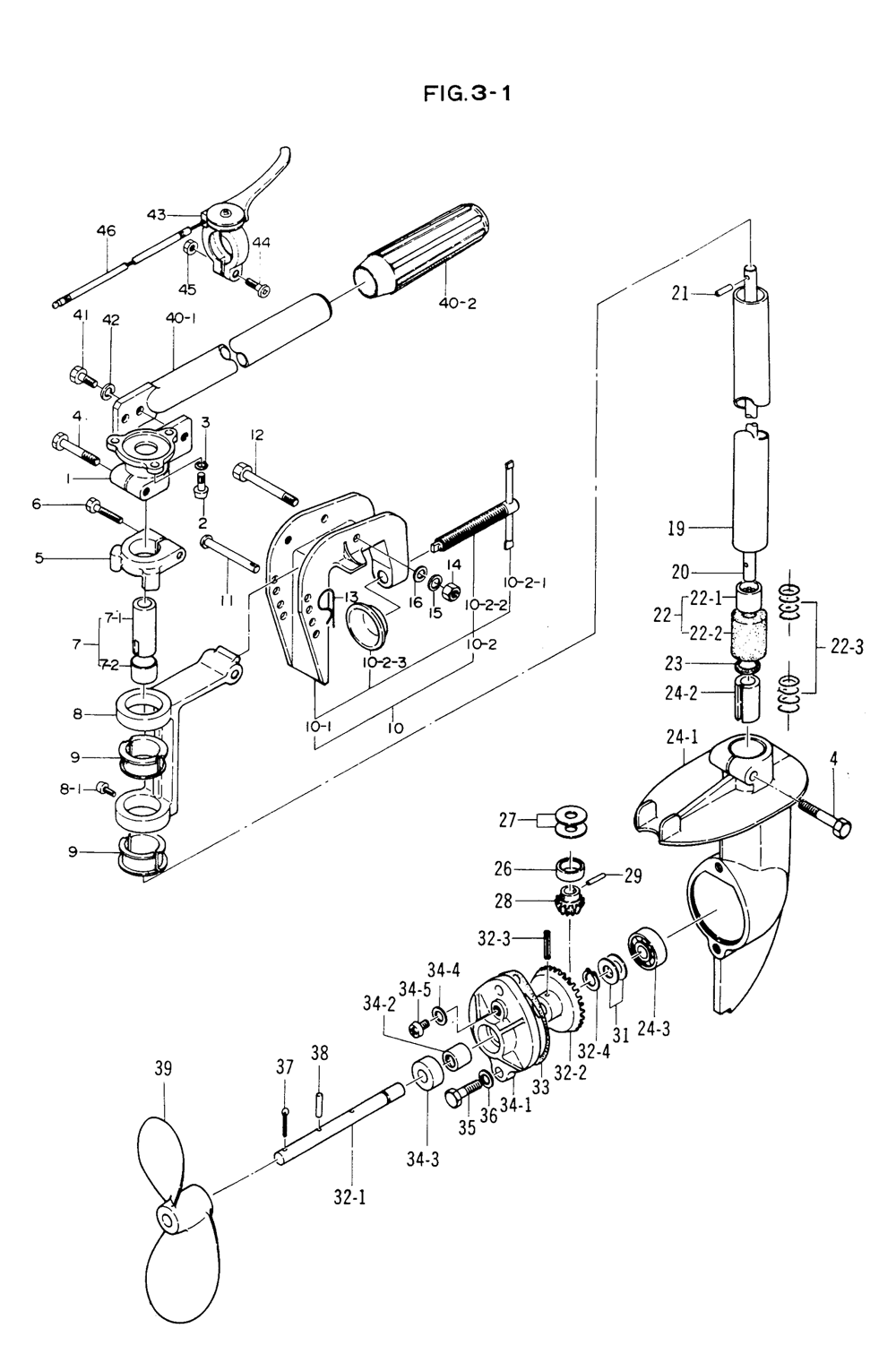

Fig-2

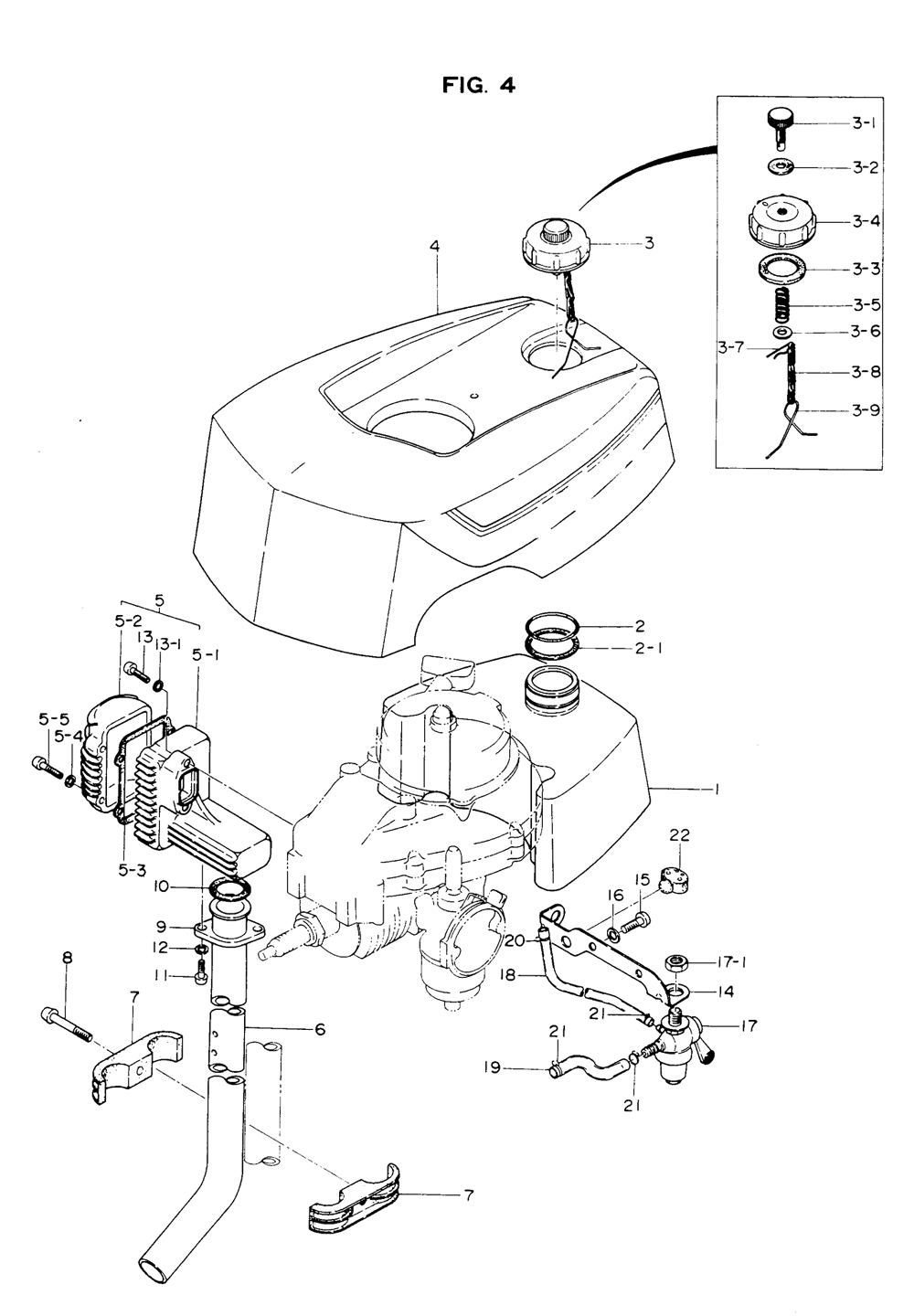

Fig-3

Reference Filter: Filter parts list by name or model number:

Tanaka TOB-12B Replacement Parts List

1-1.1

Cylinder Part # 6685506 Currently not available

N/A
1-2

Gasket,cylinder Part # 6685707 Currently not available

N/A
1-4

Muffler Packing Part # 73700501200 Currently not available

N/A
1-5

Spark Plug CJ8 Ngk BM6A Part # 6685771 Currently not available

N/A
1-6

SCREW,6X20 Part # 6694934 Currently not available

N/A
1-7

WASHER,S,6 Part # 6695221 Currently not available

N/A
1-8

Crank Shaft Comp. Part # 04600501801 Currently not available

N/A
1-9

KEY,WOODRUFF,3x13x5 Part # 6686457 Currently not available

N/A
1-10

Piston Part # 6685917

$22.97
Add to Cart
1-11

Pin,piston 9x24 Part # 6686005 Currently not available

N/A
1-12

Circlip,piston Pin Part # 6685078

$2.50
Add to Cart
1-13

Ring,piston Part # 6686116 Currently not available

N/A
1-14.1

Carburetor Body Comp. | Part Is Obsolete. Part # 0000000 Currently not available

N/A
1-14.2

Seal,oil Part # 6696302 Currently not available

N/A
1-14.3

BEARING,BALL,#6201 32mm/OD Part # 6695552 Currently not available

N/A
1-14.4

PIN,KNOCK,4x12 Part # 6695520 Currently not available

N/A
1-15

Gasket,crankcase Part # 6686686 Currently not available

N/A
1-18

0.05 Crank Shaft Shim Part # 07100000200 Currently not available

N/A
1-19

0.05 Crank Shaft Shim Part # 07100000200 Currently not available

N/A
1-20.1

Crank Case(magneto Side) | Part Is Obsolete. Part # 00000000 Currently not available

N/A
1-20.2

PIN,KNOCK,4x12 Part # 6695520 Currently not available

N/A
1-20.3

BEARING,BALL,#6202 35mm/OD Part # 6695557

$7.43
Add to Cart
1-20.4

SEAL,OIL,UD15257 Part # 6695637

$5.28
Add to Cart
1-24

Intake Pipe Part # 39300004200 Currently not available

N/A

Tanaka TOB-12B Replacement Parts
