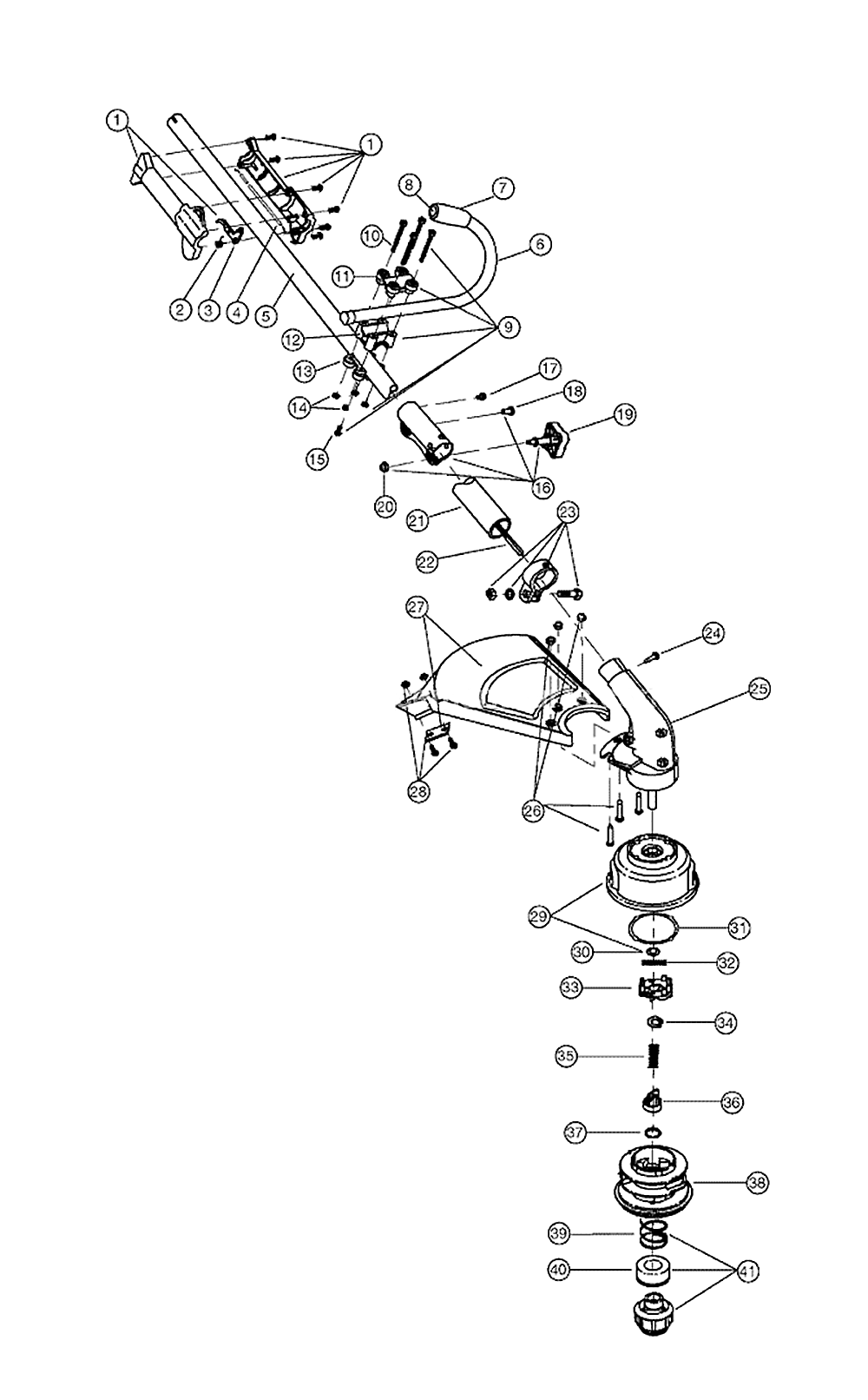

Fig-0

Fig-1

Reference Filter: Filter parts list by name or model number:

Ryobi 775R (41ADL05A734) Replacement Parts List

1

Throttle Housing & Trigger Assembly Part # 753-04294 Currently not available

N/A
2

Throttle Trigger Spring Part # 791-610314 Currently not available

N/A
3

Throttle Trigger Part # 753-04295 Currently not available

N/A
4

Throttle Cable Assembly Part # 791-182068 Currently not available

N/A
5

Upper Drive Shaft and Housing Assembly (shaft Is 25-1/8") Part # 753-04344 Currently not available

N/A
6

J-handle Assembly Part # 791-180687 Currently not available

N/A
7

Grip Part # 791-612831 Currently not available

N/A
8

Tube Closure Part # 791-612021 Currently not available

N/A
9

Handle Bracket Assembly Part # 791-683295 Currently not available

N/A
10

Screw Part # 791-181811 Currently not available

N/A
11

Upper Handle Clamp Part # 791-181812 Currently not available

N/A
12

Middle Handle Clamp Part # 791-181813 Currently not available

N/A
13

Lower Handle Clamp Part # 791-181814 Currently not available

N/A
14

Nut Part # 791-181815 Currently not available

N/A
15

Anti-rotation Screw Part # 791-145569 Currently not available

N/A
17

Screw Part # 791-182057 Currently not available

N/A
18

Bolt Part # 791-181617 Currently not available

N/A
19

Adjustment Knob Part # 791181981 Currently not available

N/A
20

Knob Retaining Nut Part # 791-181886 Currently not available

N/A
21

Part Part # 753-04089 Currently not available

N/A
22

Lower Flexible Drive Shaft Part # 791-181166 Currently not available

N/A
23

Upper Clamp Assembly Part # 791-153597 Currently not available

N/A
24

Anti-rotation Screw Part # 791-145569 Currently not available

N/A
25

Gear Box Assembly W/spindle Part # 791-181470 Currently not available

N/A

Ryobi 775R (41ADL05A734) Replacement Parts
