Buy Ryobi 725R (41ADL04A734) Electric Trimmers Parts

Other tools in Ryobi Electric Trimmers Parts category

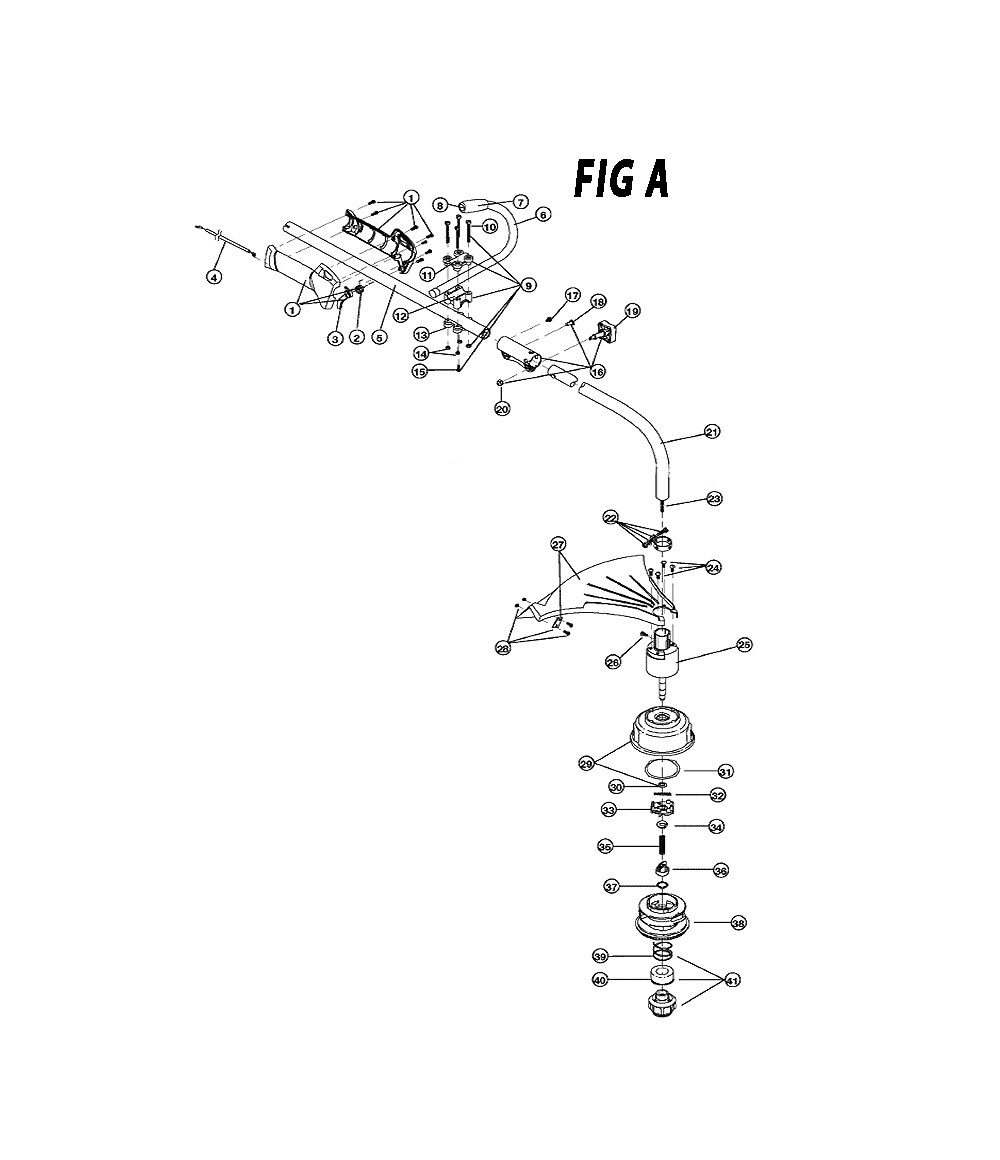

Fig-0

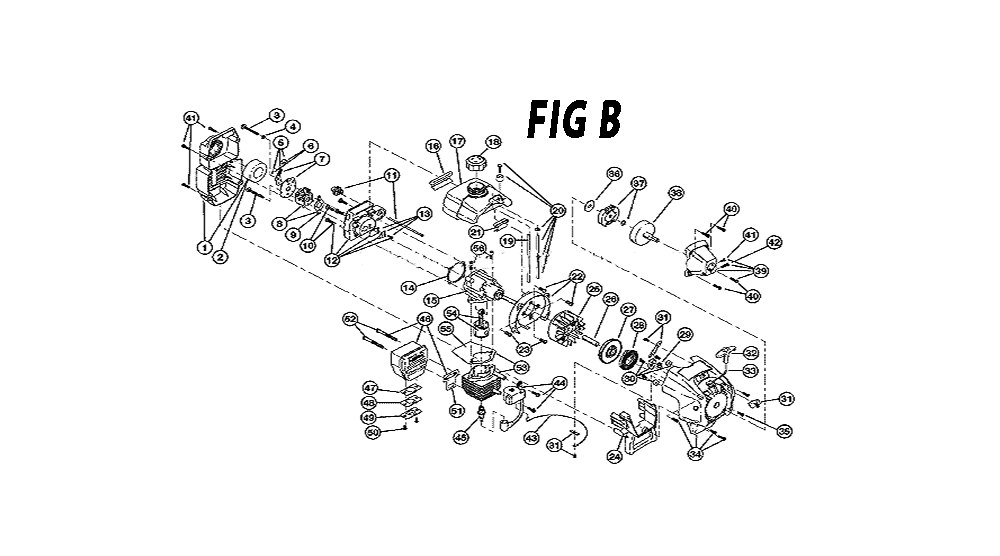

Fig-1

Reference Filter: Filter parts list by name or model number:

Ryobi 725R (41ADL04A734) Replacement Parts List

A-1

Throttle Housing Assembly (includes 2 & 3) Part # 753-04927 Currently not available

N/A
A-2

Throttle Trigger Spring Part # 791-610314 Currently not available

N/A
A-3

Throttle Trigger Part # 791-181807 Currently not available

N/A
A-4

Throttle Cable Assembly Part # 791-182068 Currently not available

N/A
A-5

Upper Drive Shaft and Housing Assembly (shaft Is 25-1/8") Part # 753-04344 Currently not available

N/A
A-6

J-handle Assembly Part # 791-180687 Currently not available

N/A
A-7

Grip Part # 791-612831 Currently not available

N/A
A-8

Tube Closure Part # 791-612021 Currently not available

N/A
A-9

Handle Bracket Assembly Part # 791-683295 Currently not available

N/A
A-10

Screw Part # 791-181811 Currently not available

N/A
A-11

Upper Handle Clamp Part # 791-181812 Currently not available

N/A
A-12

Middle Handle Clamp Part # 791-181813 Currently not available

N/A
A-13

Lower Handle Clamp Part # 791-181814 Currently not available

N/A
A-14

Nut Part # 791-181815 Currently not available

N/A
A-15

Anti-rotation Screw Part # 791-145569 Currently not available

N/A
A-17

Screw Part # 791-182057 Currently not available

N/A
A-18

Bolt Part # 791-181617 Currently not available

N/A
A-19

Adjustment Knob Part # 791181981 Currently not available

N/A
A-20

Knob Retaining Nut Part # 791-181886 Currently not available

N/A
A-21

Lower Boom Housing Part # 753-1218 Currently not available

N/A
A-22

Upper Clamp Assembly Part # 791-153597 Currently not available

N/A
A-23

Lower Flexible Drive Shaft (24 3/4") Part # 791-181852 Currently not available

N/A
A-24

Guard Mounting Screw Assembly Part # 791-181858 Currently not available

N/A
A-25

Bushing Housing Assembly Part # 791-181857 Currently not available

N/A

Ryobi 725R (41ADL04A734) Replacement Parts
