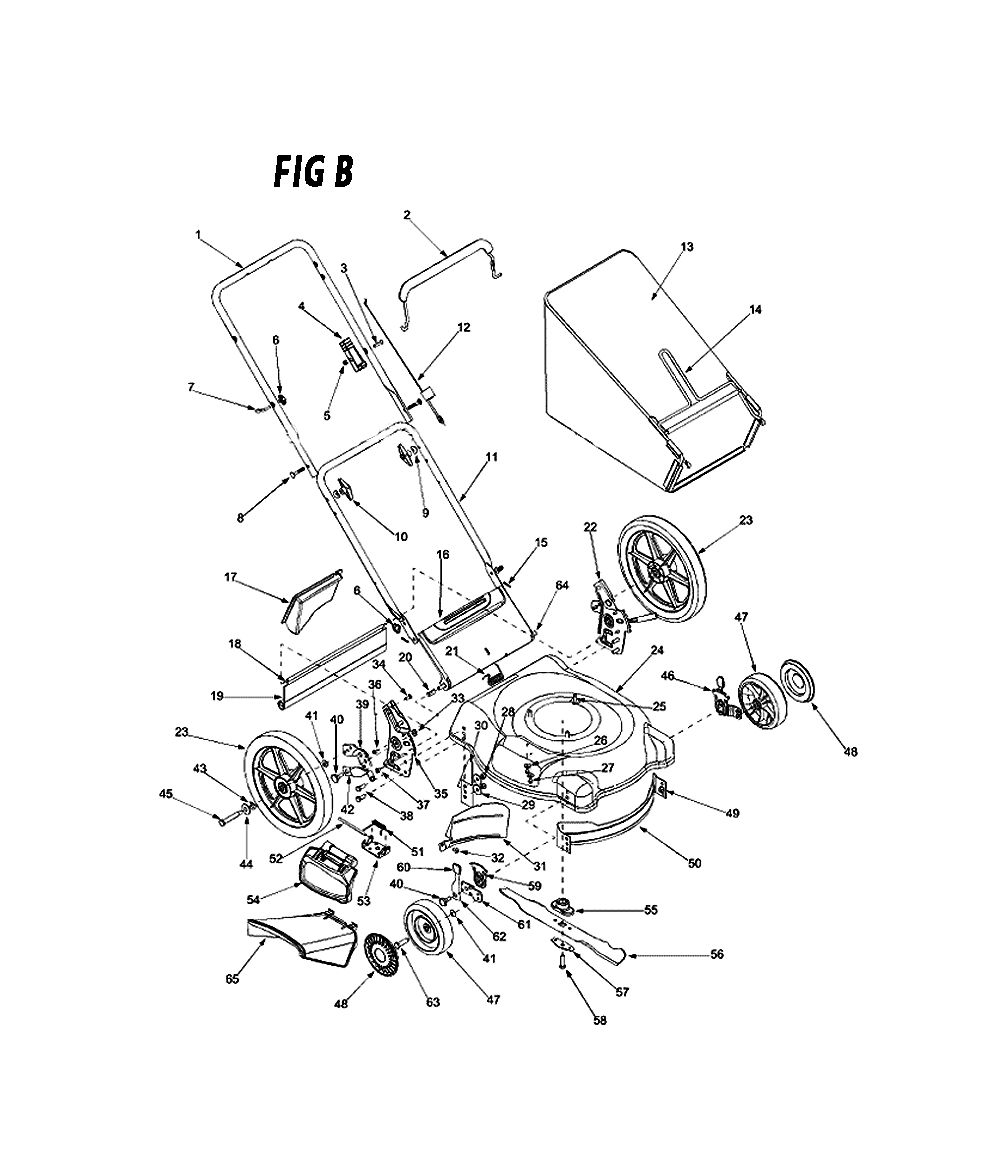

Fig-1

Reference Filter: Filter parts list by name or model number:

Ryobi 11A-545D034 Replacement Parts List

A-2

Control Handle Part # 747-1161A-0637 Currently not available

N/A
A-3

Handle Knob Part # 720-0279 Currently not available

N/A
A-4

Rope Guide Part # 710-1205 Currently not available

N/A
A-5

Carriage Bolt 5/16-18 X 2" Part # 710-1174 Currently not available

N/A
A-6

Saddle Washer Part # 936-0451 Currently not available

N/A
A-7

Star Knob 5/16-18 Part # 720-04072A Currently not available

N/A
A-8

Lower Handle Part # 749-0928A-0637 Currently not available

N/A
A-9

Control Cable 40" Housing 53" Total Length Part # 946-1130 Currently not available

N/A
A-10

Grass Bag Part # 964-0084 Currently not available

N/A
A-11

Frame-grassbag 21In. Part # 747-04080A-0637 Currently not available

N/A
A-12

Int. Cotter Pin 5/16" Dia. Part # 914-0104 Currently not available

N/A
A-13

Rd Chute Door Part # 931-04134 Currently not available

N/A
A-14

Wire Rod Part # 732-0700 Currently not available

N/A
A-15

Rear Trail Shield Part # 731-04998 Currently not available

N/A
A-16

Spacer.390OD x.810ID x.950" Part # 950-04162 Currently not available

N/A
A-17

Torsion Spring - Rh Part # 932-04090 Currently not available

N/A
A-18

Handle Brkt. W/adj Ass'y Comp- Lh Part # 987-02032 Currently not available

N/A
A-18-1

Handle Brkt. W/adj Ass'y Comp- Rh Part # 987-02034 Currently not available

N/A
A-19

Rear Wheel Assembly 14 X 1.8 Part # 734-1864 Currently not available

N/A
A-21

Tt Sems Screw 3/8-16 X 1.0" Part # 710-0654A Currently not available

N/A
A-22

Bell-wash. 1/4 I.d. Part # 736-0270 Currently not available

N/A
A-23

Tt Screw 1/4-20 X 0.5 Part # 710-0599 Currently not available

N/A
A-24

Flange L-nut 3/8-16 Thd. Part # 912-0431 Currently not available

N/A
A-25

Mulching Baffle - R.r. Part # 782-5004B Currently not available

N/A

Ryobi 11A-545D034 Replacement Parts
