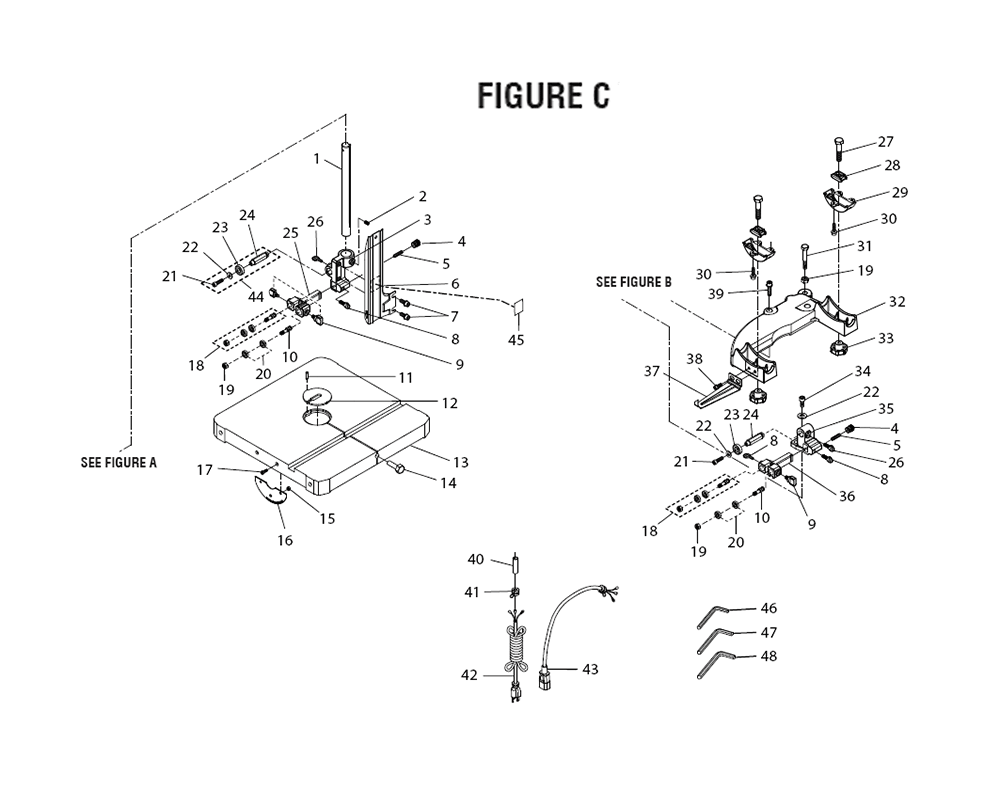

Fig-1

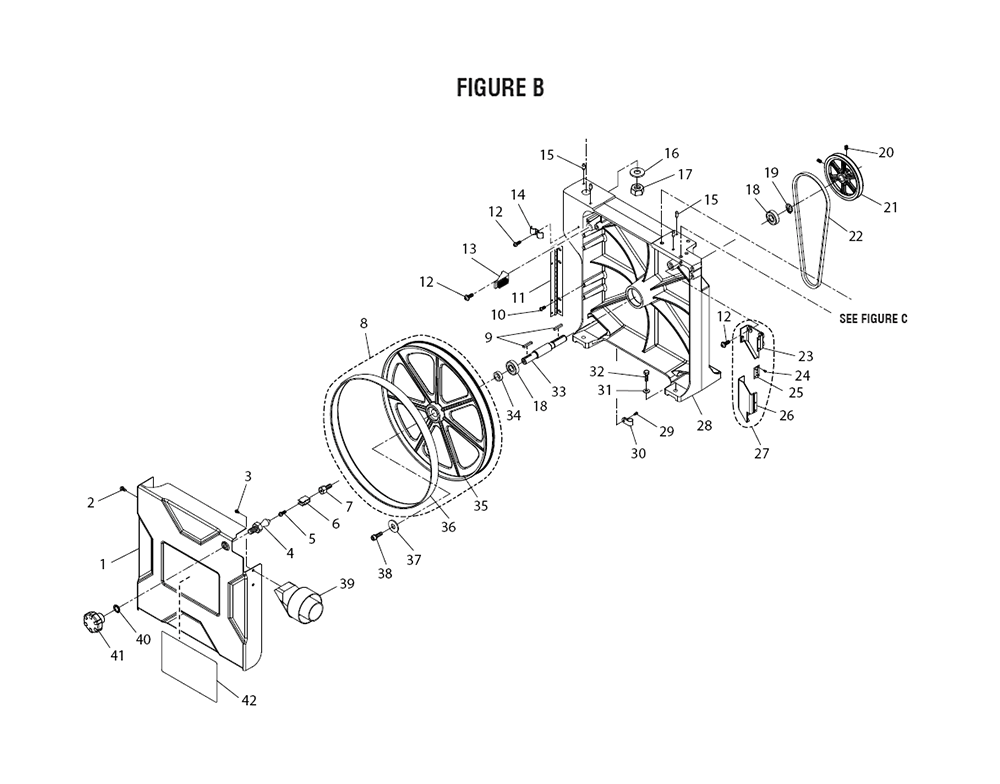

Fig-2

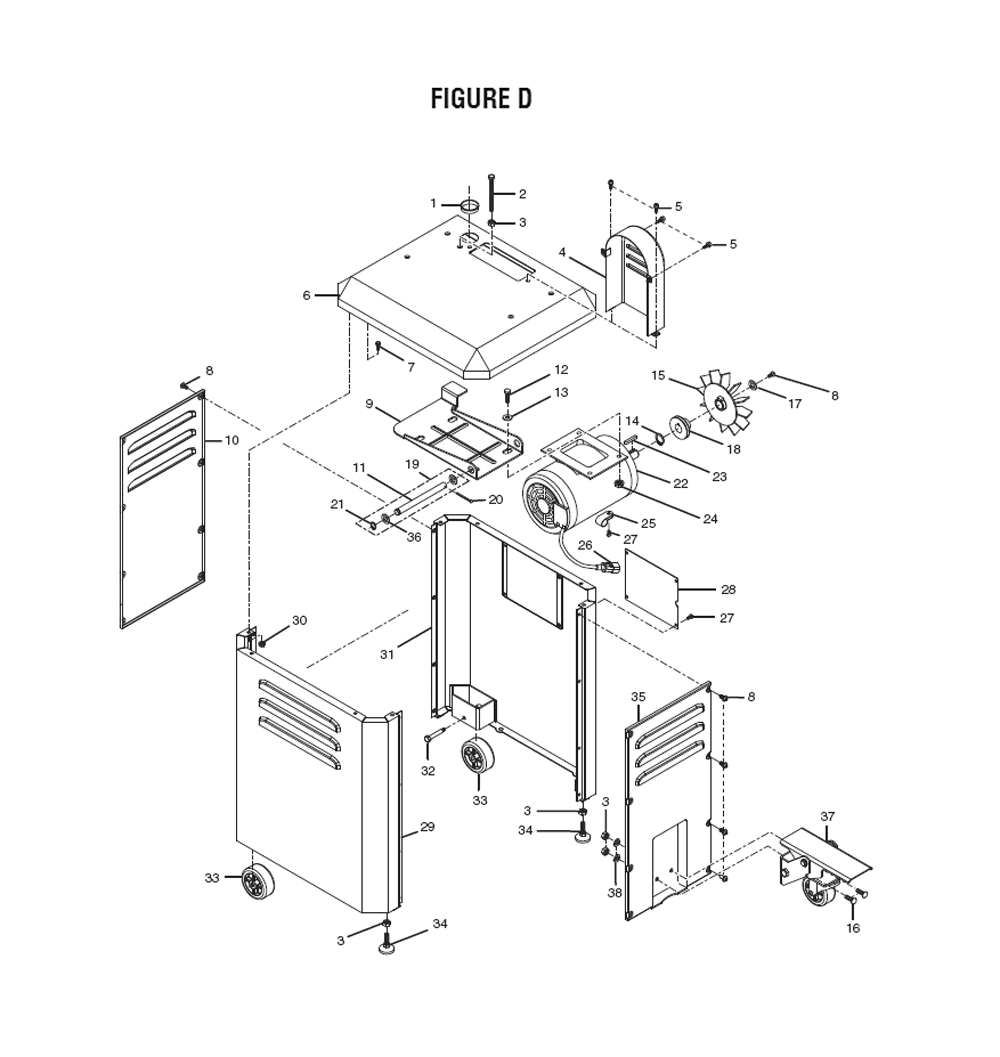

Fig-3

Reference Filter: Filter parts list by name or model number:

Ridgid R474 Replacement Parts List

A-1

Upper Wheel Cover, Front Part # 089030005082 Currently not available

N/A
A-2

Screw W/washer (M4 X 8 Mm) Part # 089030005074 Currently not available

N/A
A-3

Blade (93-1/2 In. X 3/8 In. X 0.025 In. X 6TPI) Part # 089030005071 Currently not available

N/A
A-4

Screw (M4 X 10 Mm, Ft Hd.) Part # 089030005105 Currently not available

N/A
A-5

Tracking View Window Part # 089030005075 Currently not available

N/A
A-6

Screw W/washer (M6 X 12 Mm) Part # 089030005108 Currently not available

N/A
A-7

Washer (6.4 X 23 X 2t) Part # 089030005049 Currently not available

N/A
A-8

Ball Bearing (6202ZZ) Part # 089030005066 Currently not available

N/A
A-9

Tire Part # 089030005070 Currently not available

N/A
A-10

Upper Wheel Part # 089030005068 Currently not available

N/A
A-11

Spacer Part # 089030005132 Currently not available

N/A
A-12

Retaining Ring, Internal Part # 089030005067 Currently not available

N/A
A-13

Screw (M10 X 16 Mm) Part # 089030005130 Currently not available

N/A
A-14

Washer Part # 089030005131 Currently not available

N/A
A-15

Locking Screw (M6 X 10 Mm, Pan Hd) Part # 089030005087 Currently not available

N/A
A-16

Upper Hinge Part # 089030005086 Currently not available

N/A
A-17

Screw W/washer (M5 X 8 Mm) Part # 089030005127 Currently not available

N/A
A-18

External Tooth Washer (M5) Part # 089030005126 Currently not available

N/A
A-19

Switch Box Mounting Plate Part # 089030005104 Currently not available

N/A
A-20

Screw W/washer (M5 X 10 Mm) Part # 089030005040 Currently not available

N/A
A-21

Upper Wheel Cover, Rear Part # 089030005088 Currently not available

N/A
A-22

Upper Wheel Shaft Part # 089030005091 Currently not available

N/A
A-22

Upper Wheel Adjuster Assembly (inc. Key Nos. 22-25 and 29) Part # 089030005700 Currently not available

N/A
A-22

Upper Wheel Adjuster Assembly (inc. Key Nos. 22-25 and 29) Part # 089030005700 Currently not available

N/A
