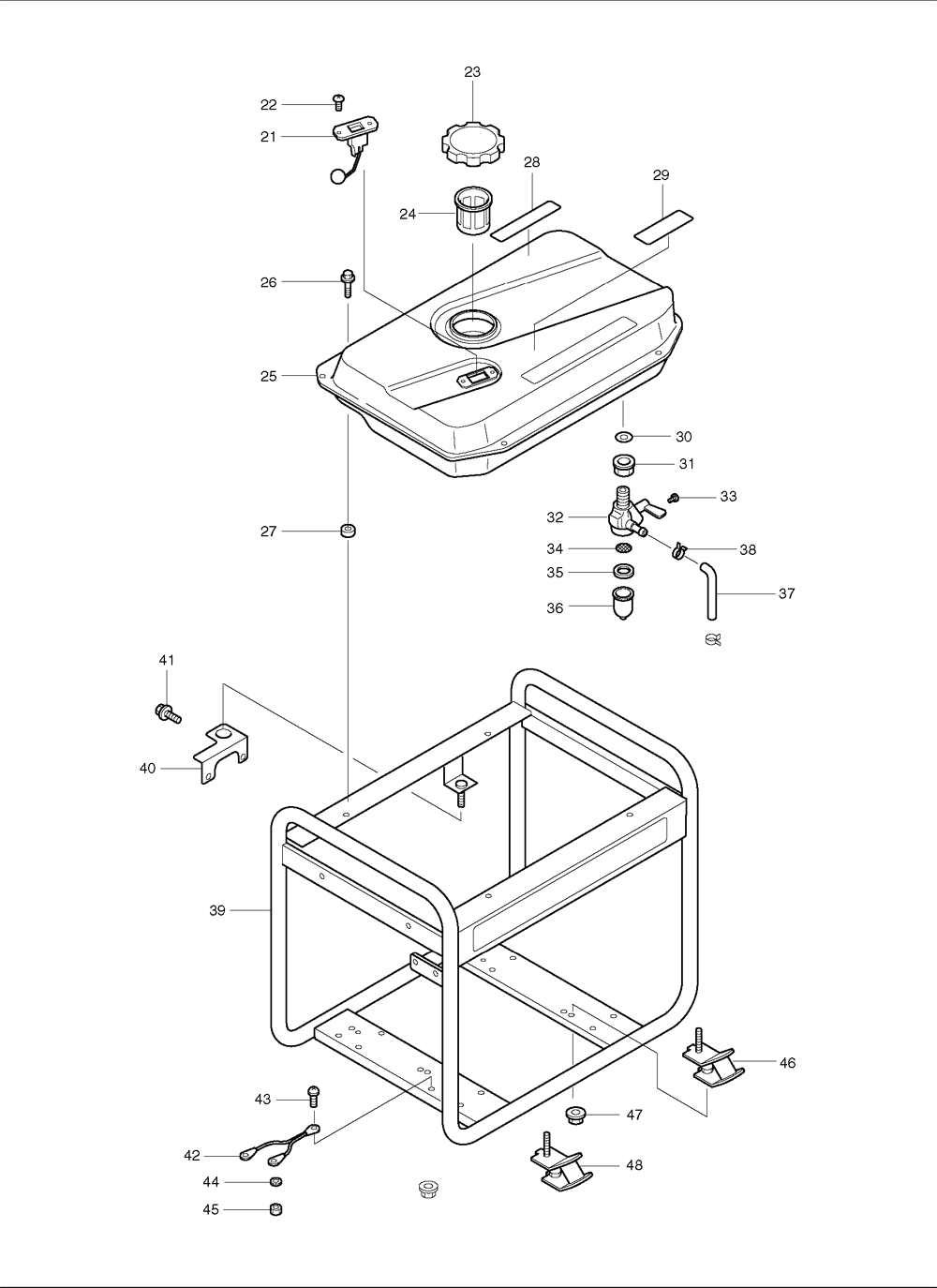

Fig-1

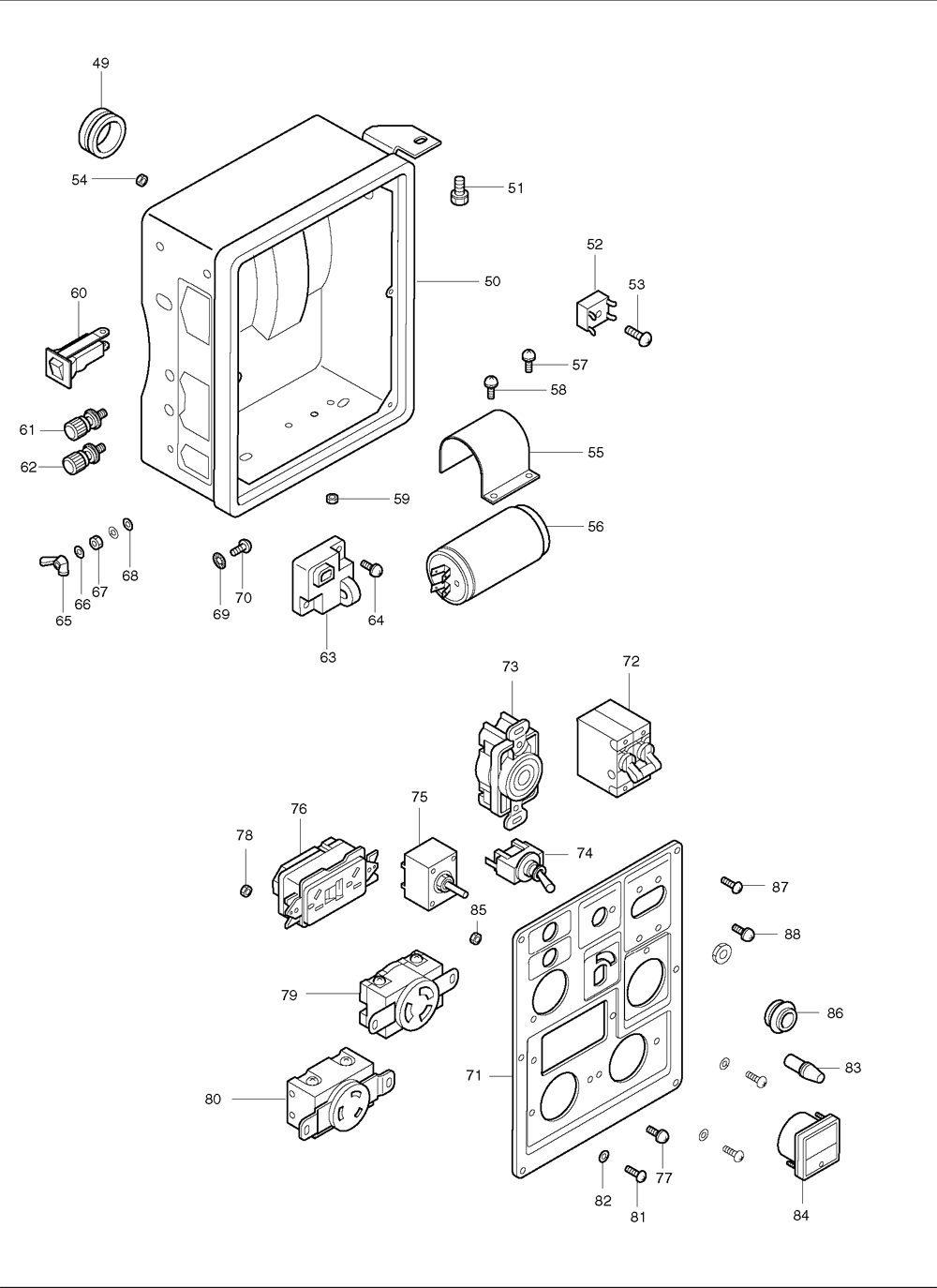

Fig-2

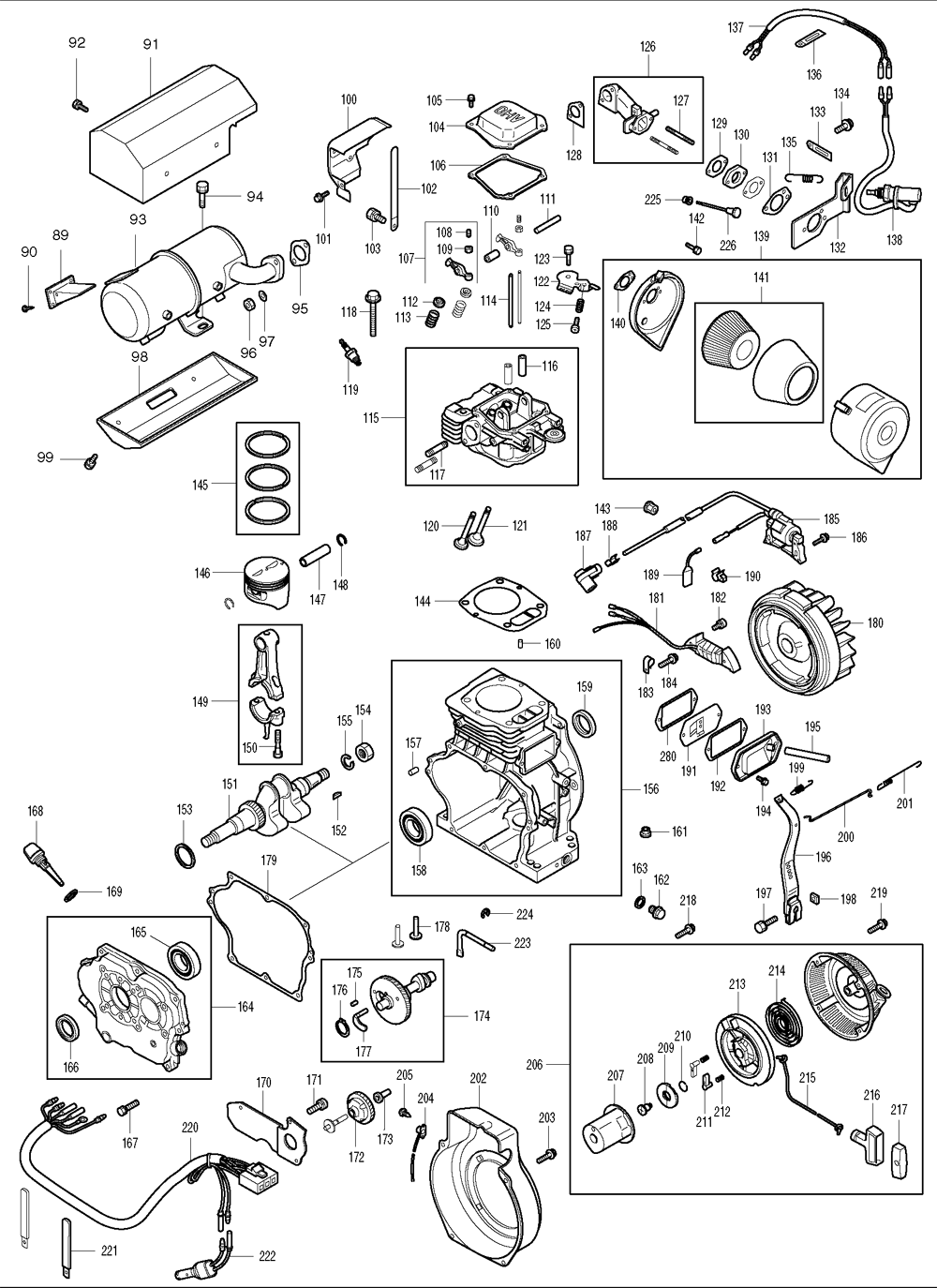

Fig-3

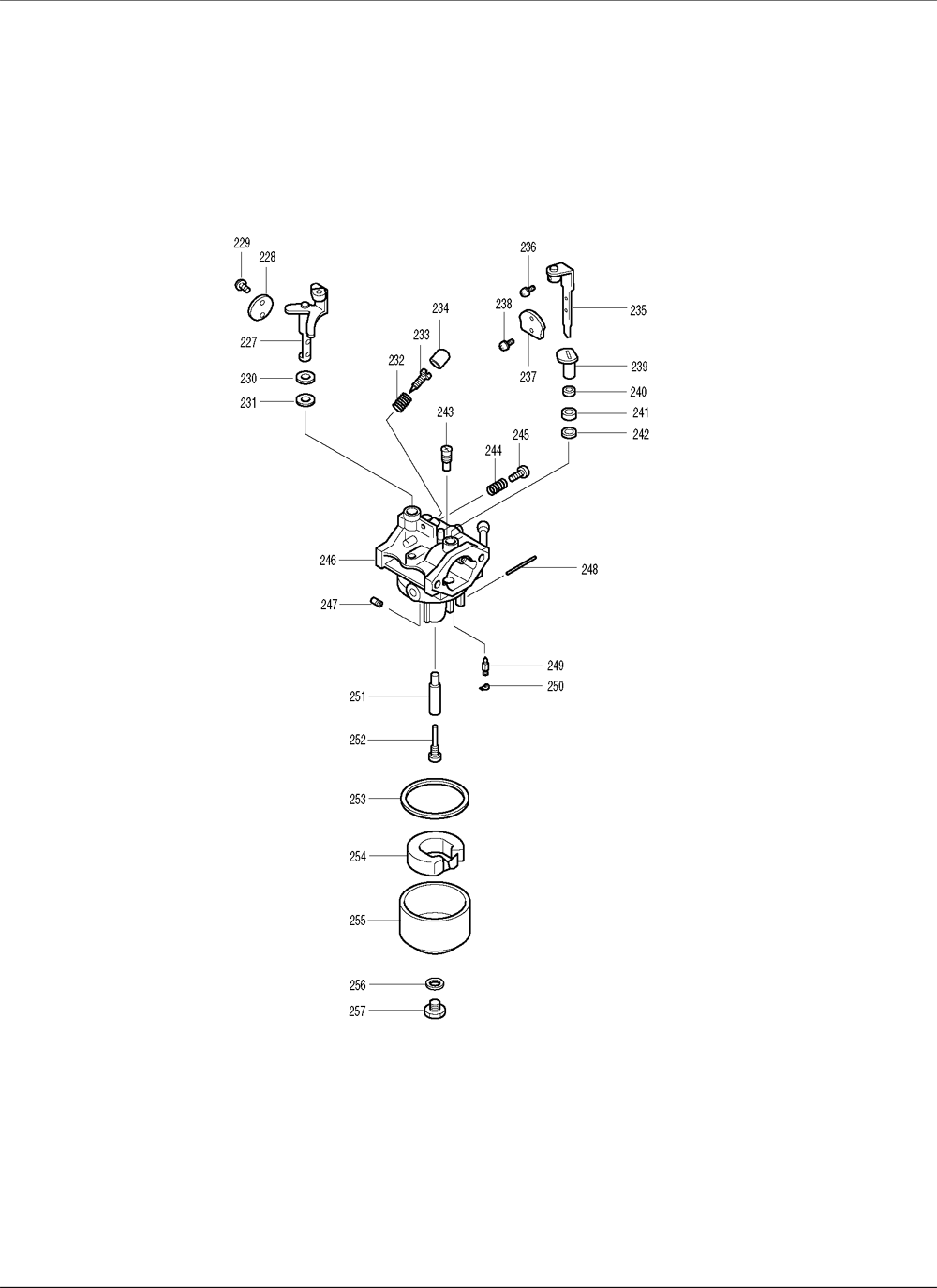

Fig-4

Fig-5

Reference Filter: Filter parts list by name or model number:

Makita G3510R Replacement Parts List

40

Stopper Plate, G2800R Part # 31B-39101-13 Currently not available

N/A
1

No Longer Available - End Cover, G3511R Part # 388-55001-13 Currently not available

N/A
2

Flange Bolt, G6100R Part # 011-00600-10 Currently not available

N/A
3

Rear Cover, G3510R Part # 31B-26001-01 Currently not available

N/A
4

Bolt & Washer, G2800R Part # 001-14062-50 Currently not available

N/A
5

Clamp (elec STARTER),G2800R Part # 056-60002-50 Currently not available

N/A
6

Stator, G3510R Part # 31C-21106-01 Currently not available

N/A
7

Support Ring, G2410R Part # 388-54381-03 Currently not available

N/A
8

Bolt (w/washer), G3510R Part # 392-25200-03 Currently not available

N/A
9

Flange Nut, G6100R Part # 002-38080-00 Currently not available

N/A
10

Clamp, G2410R Part # 056-60001-70 Currently not available

N/A
11

Bushing, G5711R Part # 390-05001-03 Currently not available

N/A
12

Through Bolt, G3510R Part # 392-25100-03 Currently not available

N/A
13

Spring Washer, G3510R Part # 003-20100-00 Currently not available

N/A
14

Washer, G3510R Part # 003-11100-00 Currently not available

N/A
15

Ball Bearing G2800R Part # 353-58208-08 Currently not available

N/A
16

Rotor, G3511R Part # 389-01000-01 Currently not available

N/A
17

Bolt & Washer, G2410R . Part # 001-13082-00 Currently not available

N/A
18

Front Cover, G3510R Part # 389-54101-13 Currently not available

N/A
19

Front Protector, G3511R Part # 388-55101-03 Currently not available

N/A
20

Tapping Screw, G3511R Part # 015-20500-10 Currently not available

N/A
21

Fuel Gauge, G3510R Part # 064-80002-00 Currently not available

N/A
22

Counter Head Screw, G2800R Part # 014-50500-40 Currently not available

N/A
23

Fuel Tank Cap Compl., G2800R Part # 043-05900-11 Currently not available

N/A

Makita G3510R Replacement Parts
