Makita EW320R Type-1 Replacement Parts

Model: EW320R Type-1

Brand: Makita

Download Schematics

Buy Makita EW320R Type-1 Water Pump Parts

Other tools in Makita Water Pump Parts category

Fig-0

Fig-0

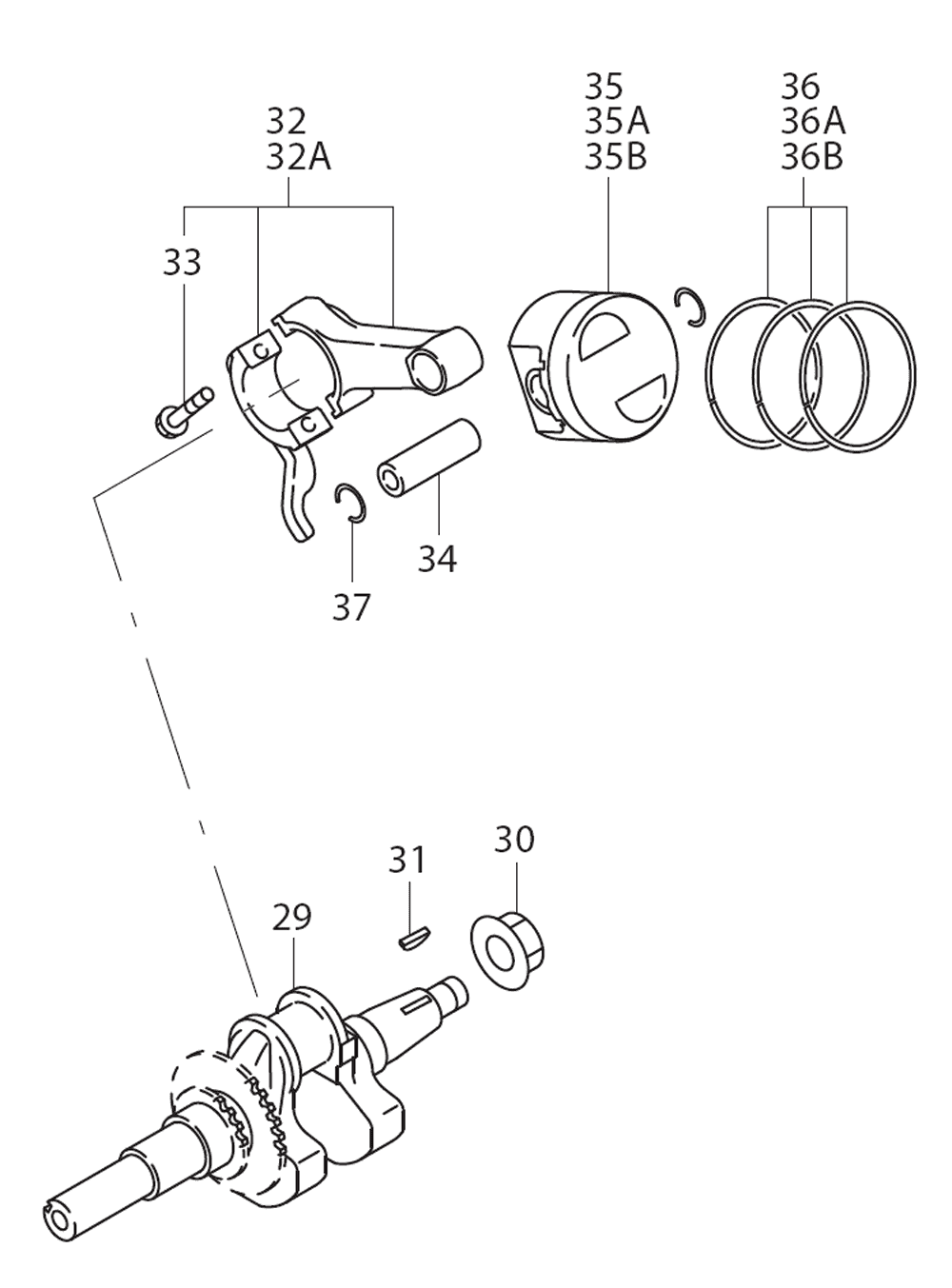

Fig-1

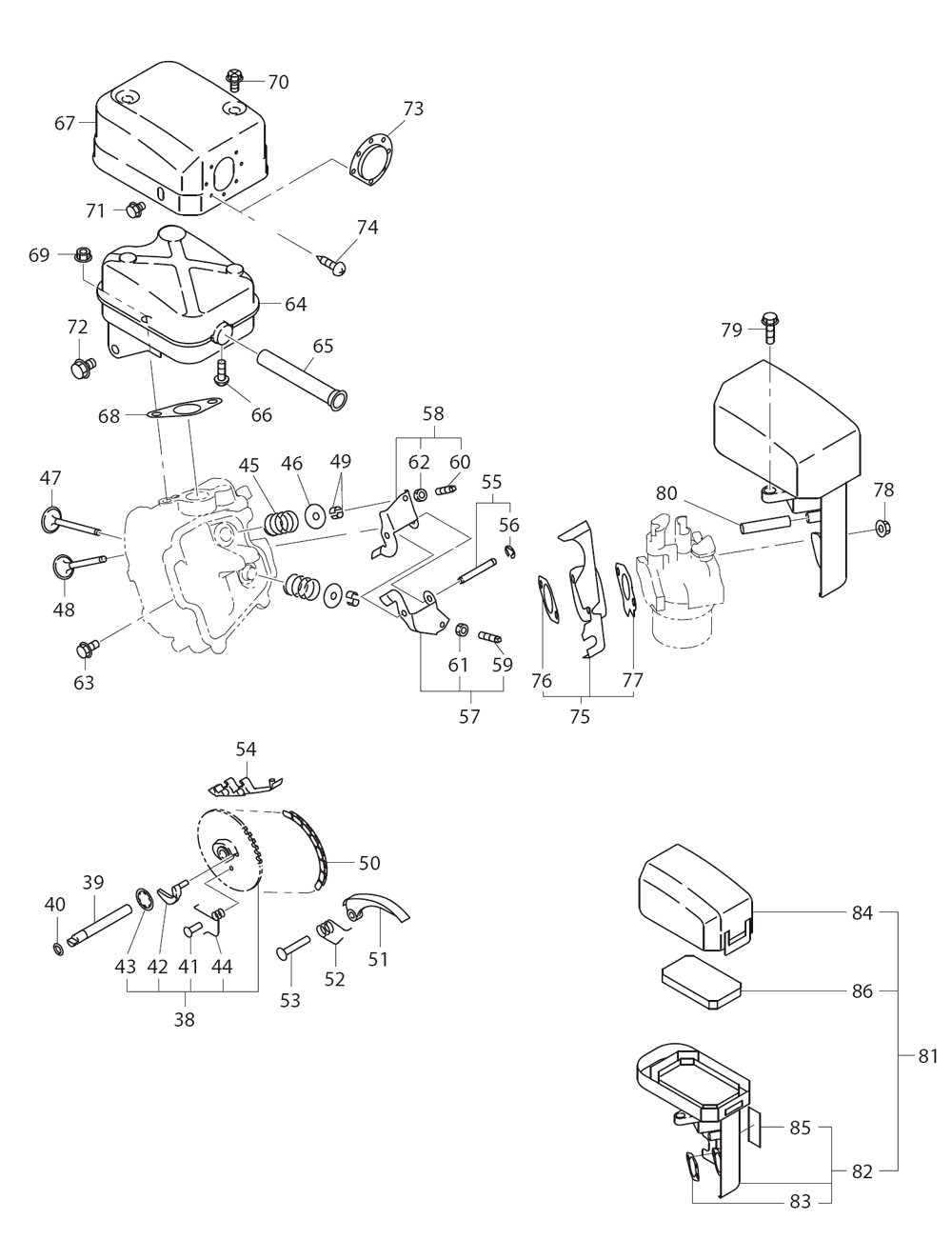

Fig-2

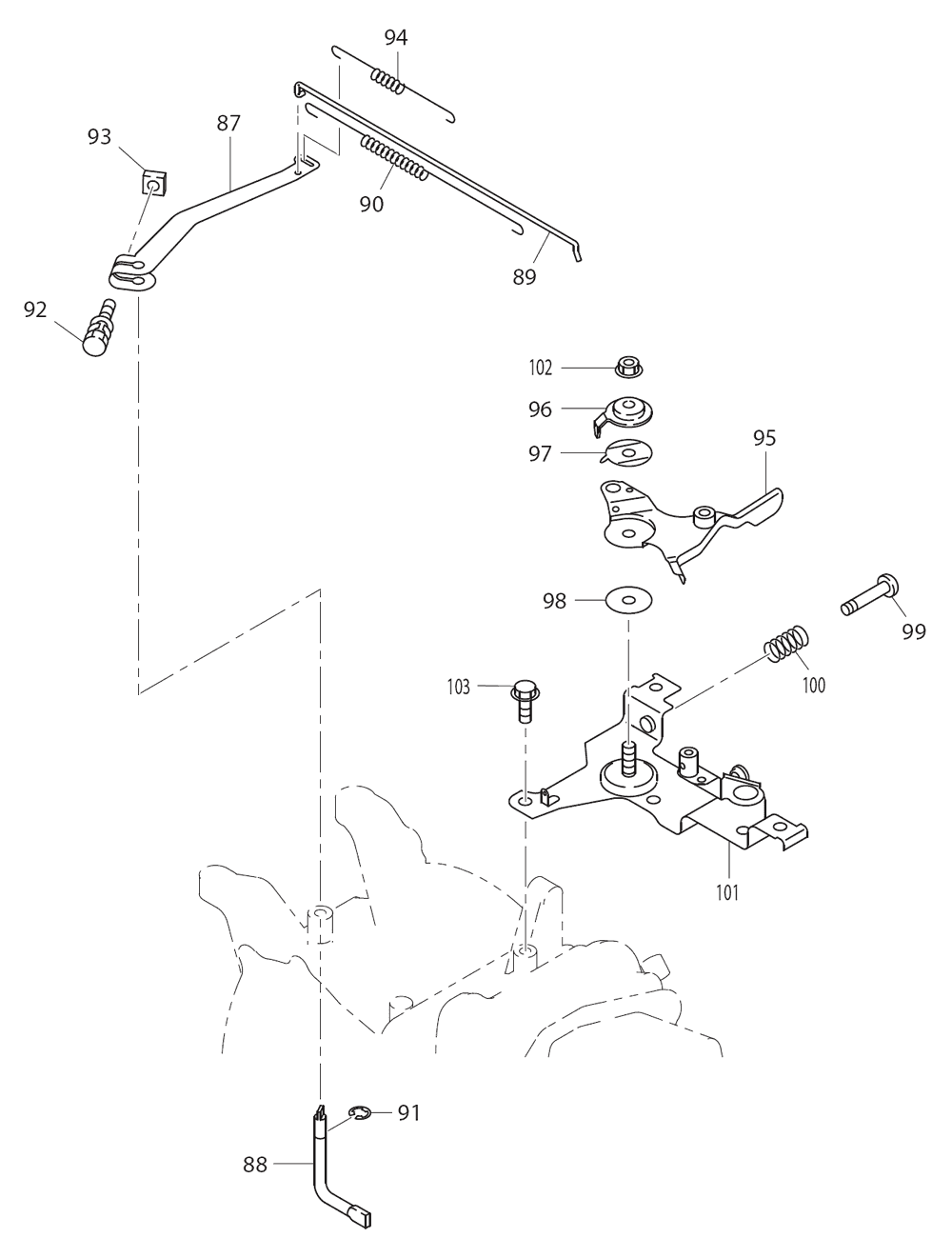

Fig-3

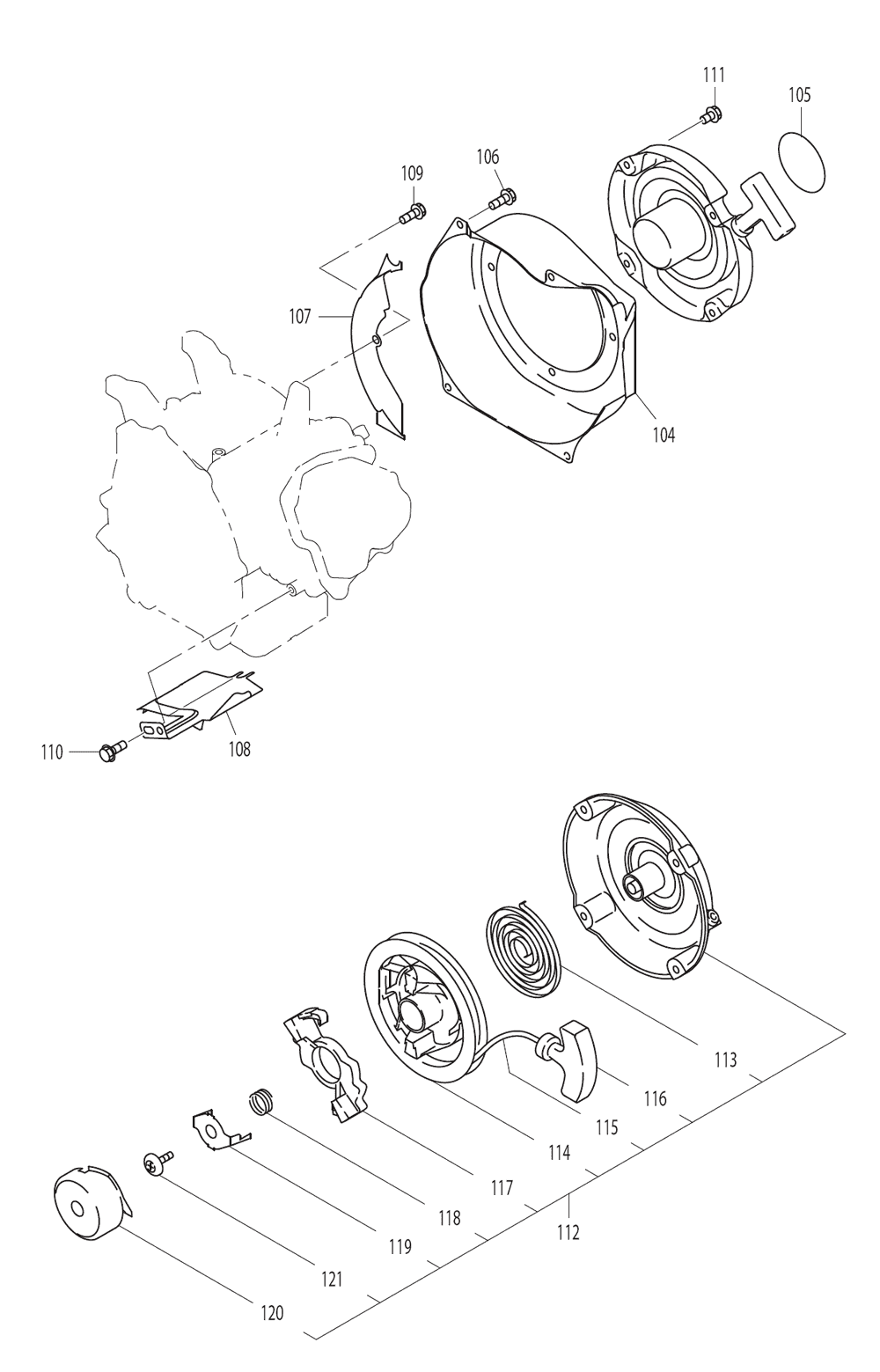

Fig-4

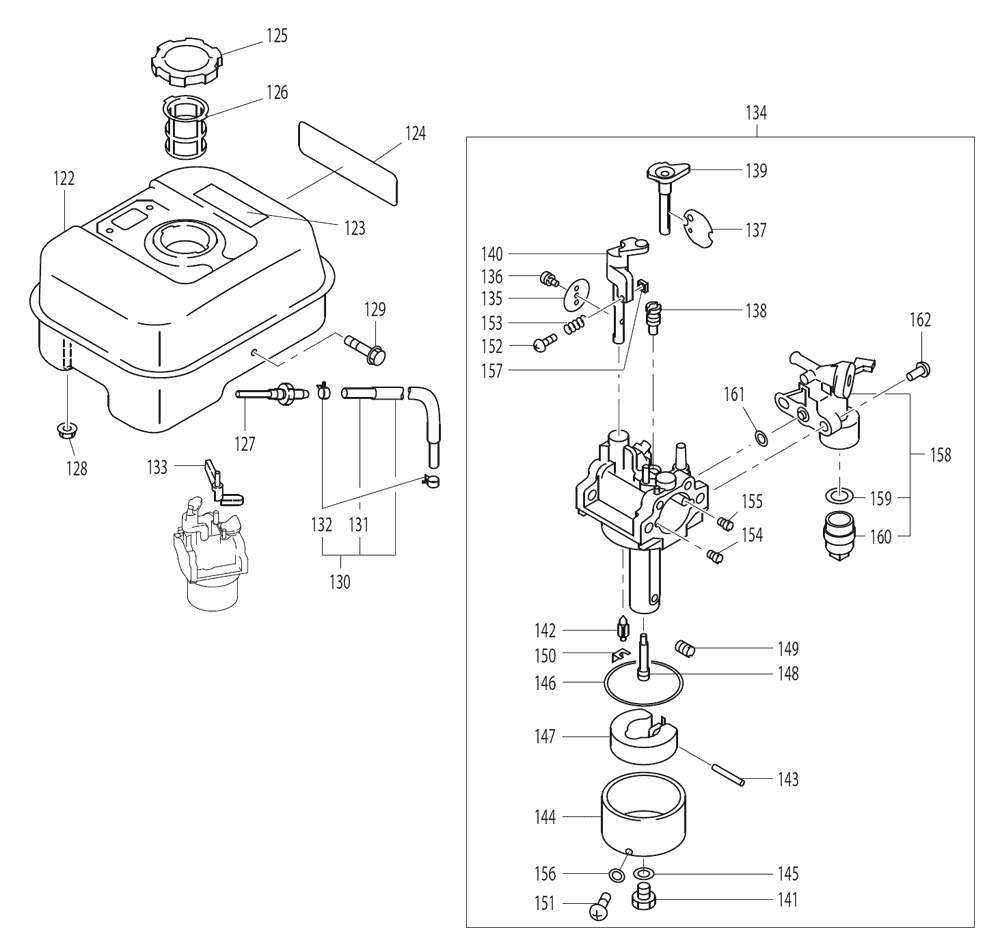

Fig-5

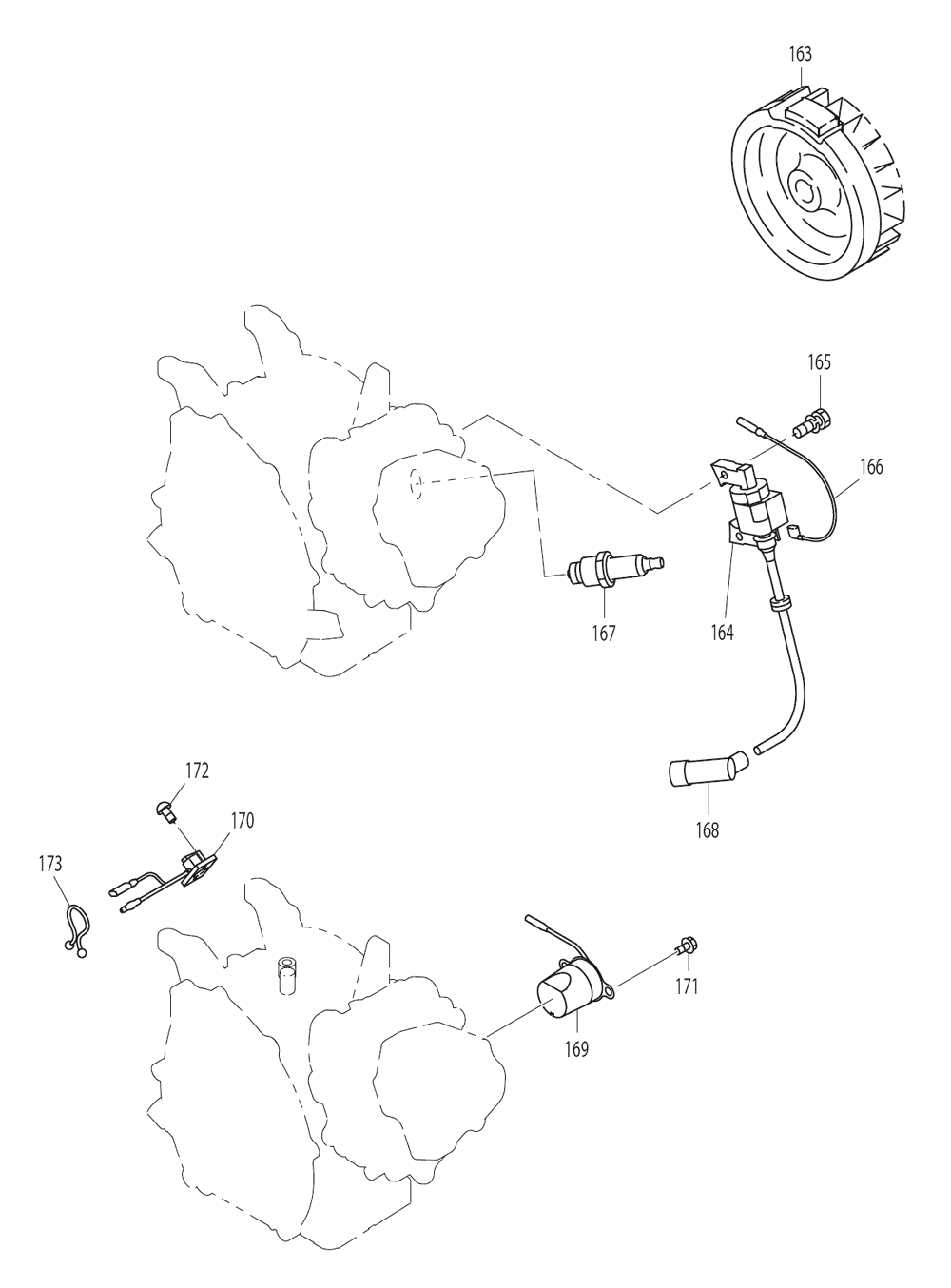

Fig-6

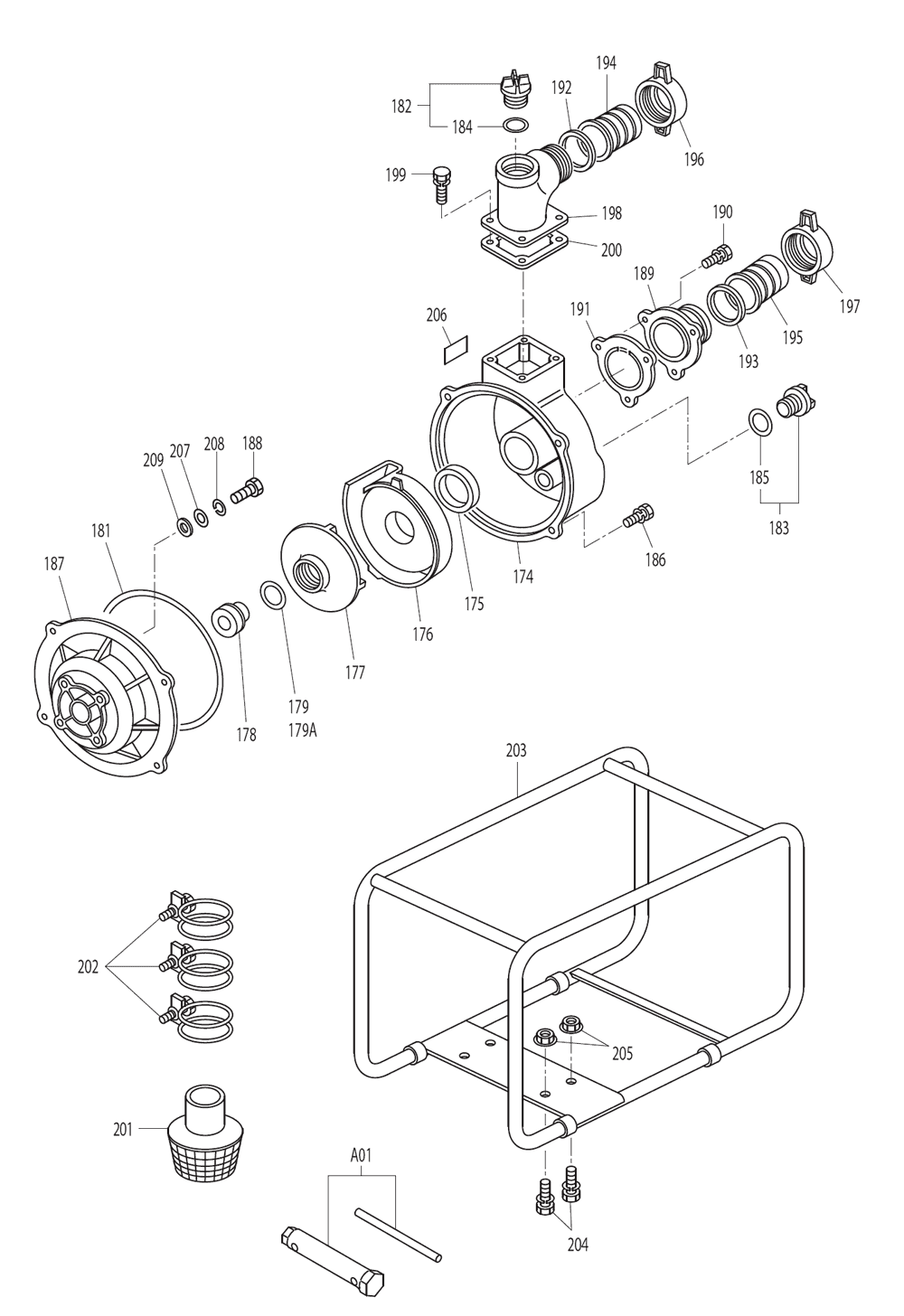

Fig-7

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Makita EW320R Type-1 Replacement Parts List

1

N/a Part # 2771010251 Currently not available

N/A
2

Valve Guide(over Size), G2800R Part # 237-14202-03 Currently not available

N/A
3

Stem Seal, G1100 Part # 277-16010-01 Currently not available

N/A
4

Oil Seal 25DX38DX7B Part # 044-02502-00 Currently not available

N/A
5

Ball Bearing, G2800L Part # 060-02800-21 Currently not available

N/A
6

Pipe Knock, G1100 Part # 277-15011-03 Currently not available

N/A
7

Stud G2410R Part # 010-50802-50 Currently not available

N/A
8

Stud, G2800L Part # 010-50603-51 Currently not available

N/A
9

Oil Seal, G1100 Part # 044-00600-20 Currently not available

N/A
10

Plug, G2800R Part # 040-11400-30 Currently not available

N/A
11

Gasket, G2800R Part # 021-11400-20 Currently not available

N/A
12

Main Bearing Cover, G2800L Part # 277-11001-31 Currently not available

N/A
13

Oil Seal, G2800L Part # 044-02502-10 Currently not available

N/A
14

Ball Bearing, G2800L Part # 060-02501-40 Currently not available

N/A
15

N/a Part # 27745004J1 Currently not available

N/A
16

Governor Sleeve, G2800L Part # 277-41901-03 Currently not available

N/A
17

N/a Part # 2776360123 Currently not available

N/A
18

Gasket, G2800R Part # 021-31600-20 Currently not available

N/A
19

Flange Bolt, G2800L Part # 001-04083-50 Currently not available

N/A
20

Cylinder Head Cp Item No. 23,78 Part # 277-13001-11 Currently not available

N/A
21

Gasket (head), G2800L Part # 277-15001-23 Currently not available

N/A
22

Flange Bolt, G2800L Part # 011-00802-40 Currently not available

N/A
23

Flange Bolt, G2800L Part # 011-00803-10 Currently not available

N/A
24

N/a Part # 2771550301 Currently not available

N/A
