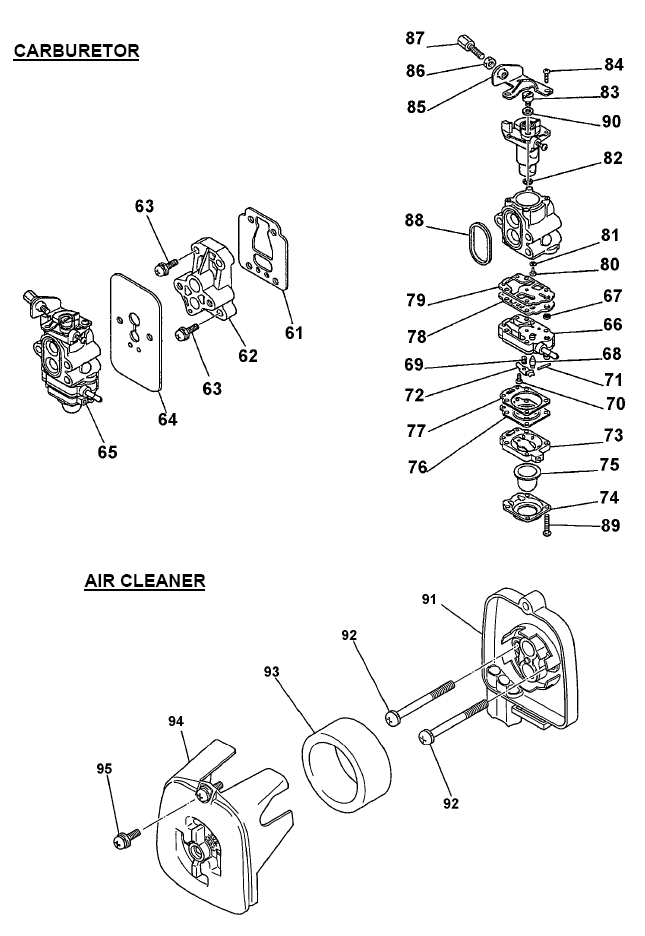

Fig-1

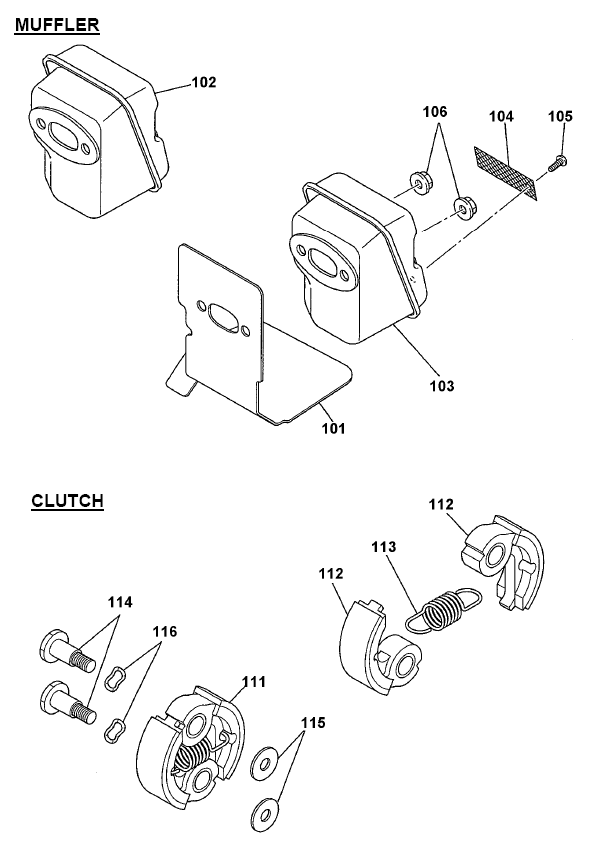

Fig-2

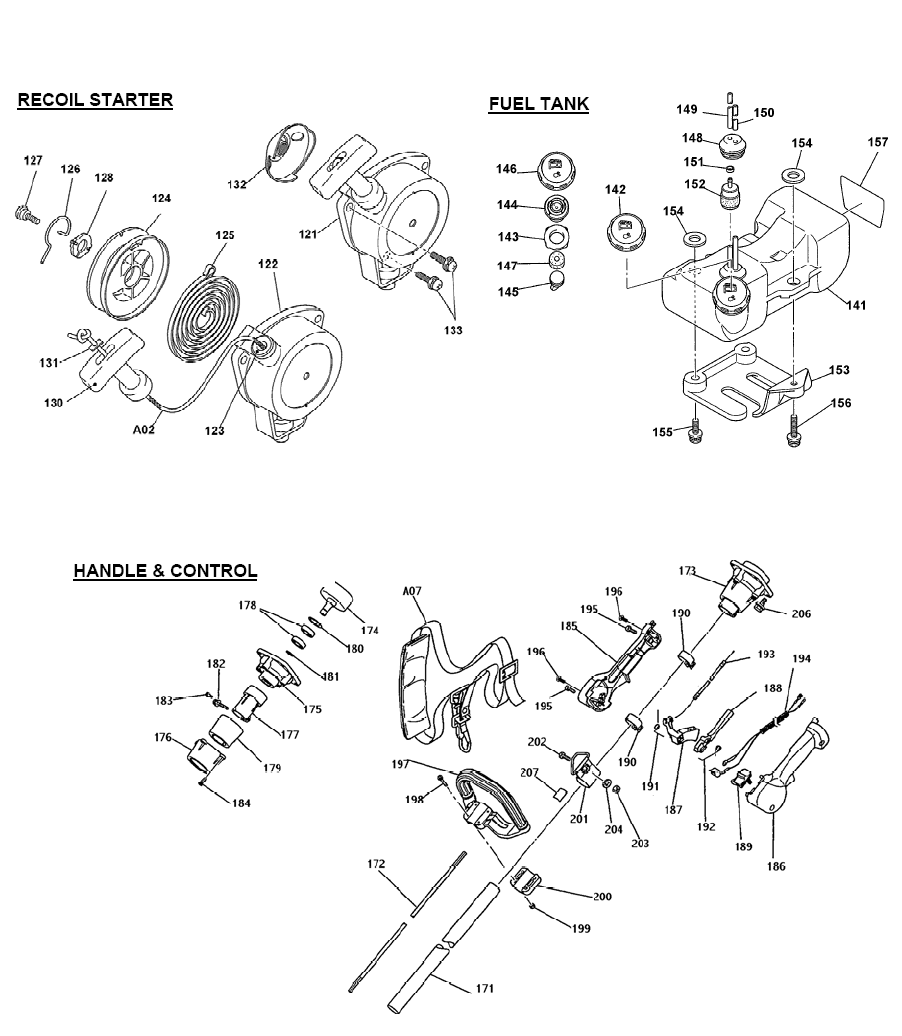

Fig-3

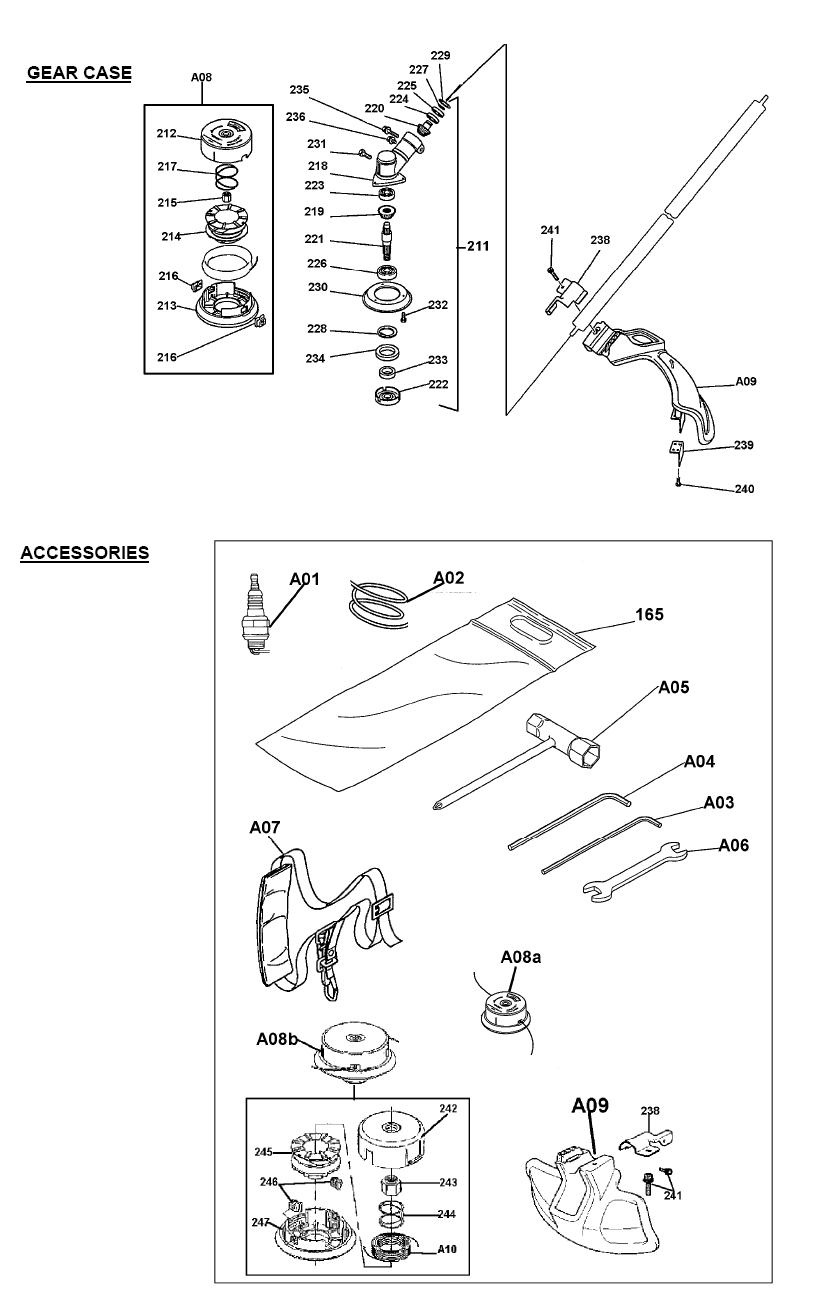

Fig-4

Reference Filter: Filter parts list by name or model number:

Makita BCM2610 Replacement Parts List

1

Case,drive, BCM2310 Part # KB13004AA Currently not available

N/A
2

Case,starter, BCM2310 Part # KB13005AA Currently not available

N/A
3

Bearing, Ball Part # S110X60X010 Currently not available

N/A
4

Oil Seal, BCM2310 Part # KW21005AA Currently not available

N/A
5

Pin,dowel, BCM2310 Part # KU40003AA Currently not available

N/A
6

Screw & Washer, BCM2310 Part # KU12028AA Currently not available

N/A
7

Guide, BCM2310 Part # KB90005AA Currently not available

N/A
8

Guide, BCM2310 Part # KB90006AA Currently not available

N/A
9

Pin, Dowel, BCM2310 Part # KU40004AA Currently not available

N/A
10

Case,fan, BCM2310 Part # KH30024DA Currently not available

N/A
11

Bolt & Washer, BCM2310 Part # FR64569E Currently not available

N/A
12

Label, BCM2310 Part # KW56056AA Currently not available

N/A
21

Cylinder, BCM2610 Part # KC13020AA Currently not available

N/A
22

Gasket,cylinder, BCM2310 Part # KW32014AA Currently not available

N/A
23

Bolt, Sch Part # B121C05X020 Currently not available

N/A
24

Cover, BCM2310 Part # KC90016AA Currently not available

N/A
25

Cover, BCM2310 Part # KC90017AA Currently not available

N/A
26

Gasket, BCM2310 Part # KW39079AA Currently not available

N/A
27

Screw,ctsk-crs, BCM2310 Part # KU12031AA Currently not available

N/A
28

Bolt, Stud Part # B151B05X050 Currently not available

N/A
29

Cover,top, BCM2310 Part # KH40094DA Currently not available

N/A
30

Guard,plug, BCM2310 Part # KH70020AA Currently not available

N/A
31

Screw & Washer Part # H071D05X020K Currently not available

N/A
32

Screw & Washer, BCM2310 Part # KU12043AA Currently not available

N/A

Makita BCM2610 Replacement Parts
