Buy Homelite EH4000HD-CSA-(UT-03692) Generator Parts

Other tools in Homelite Generator Parts category

Fig-0

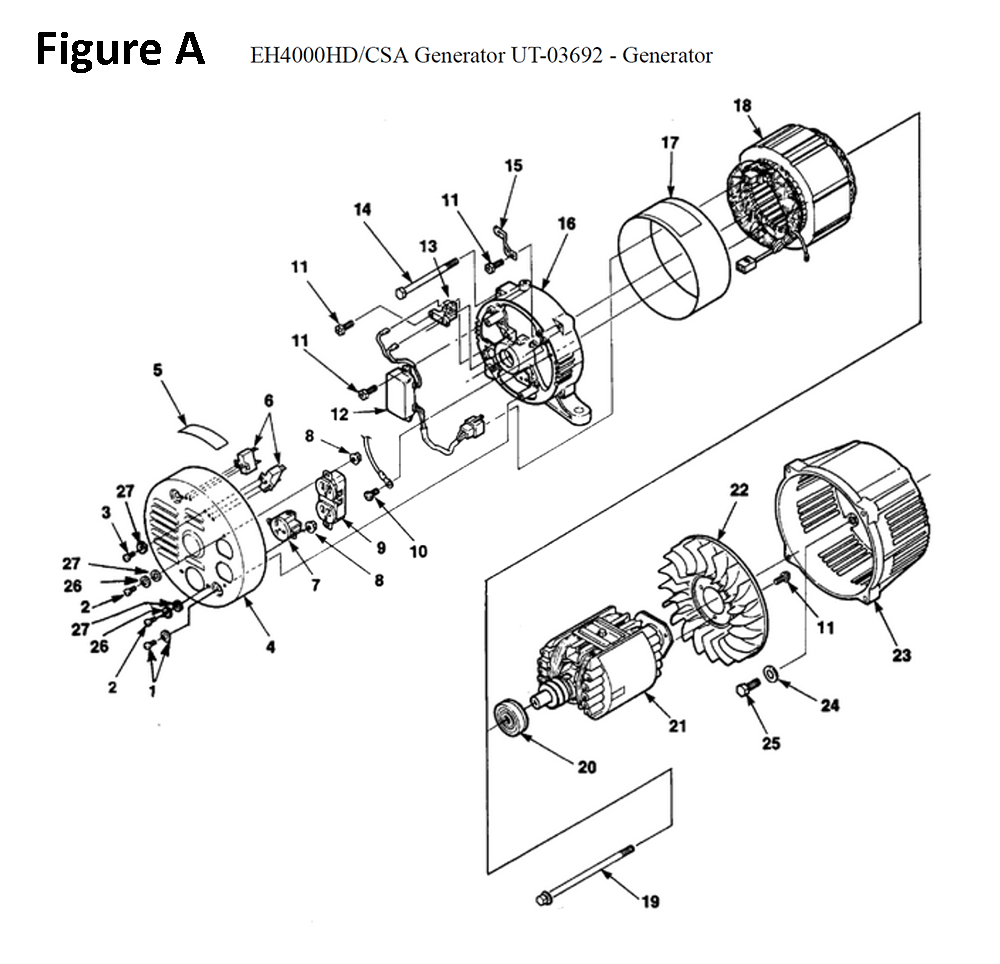

Fig-1

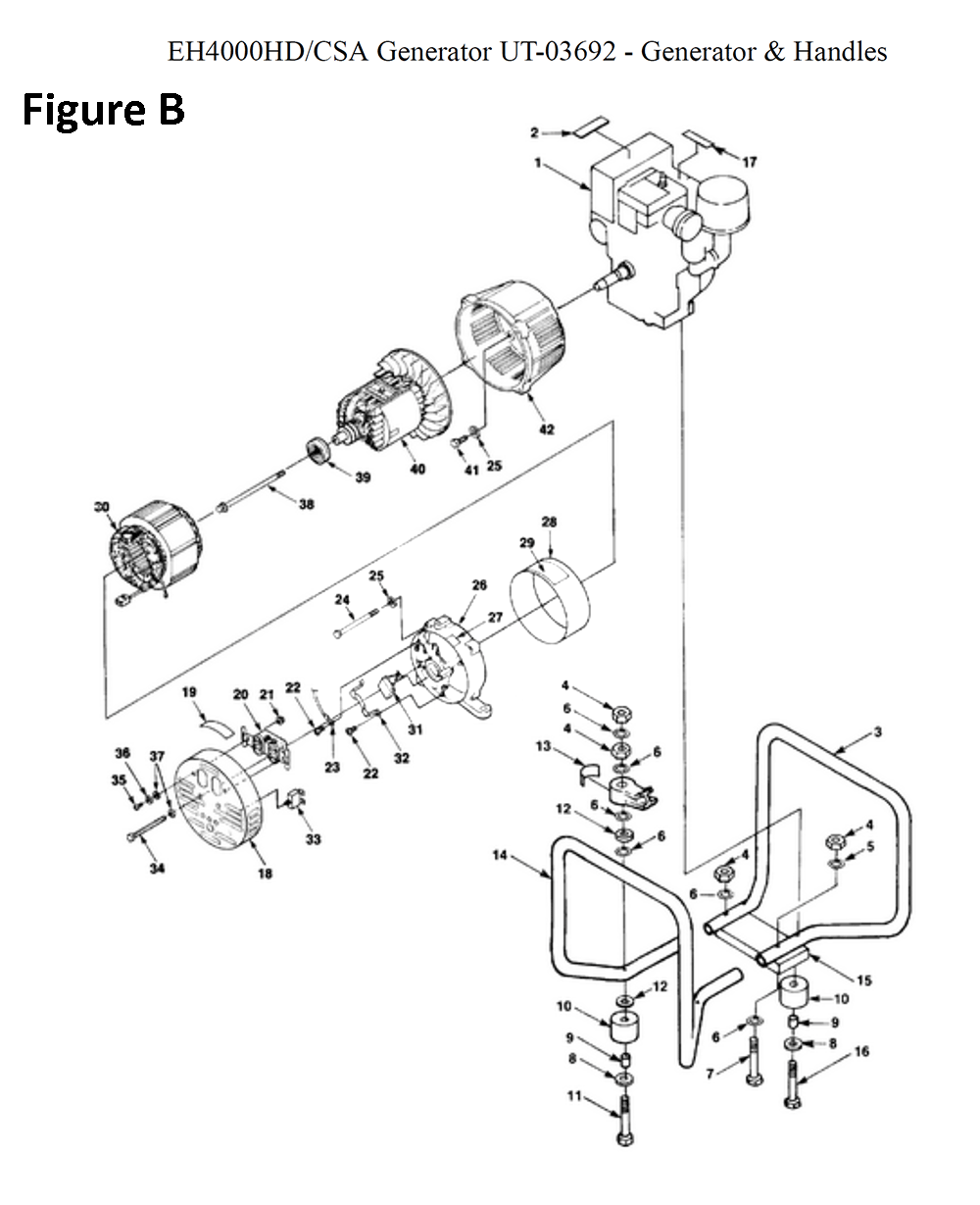

Fig-2

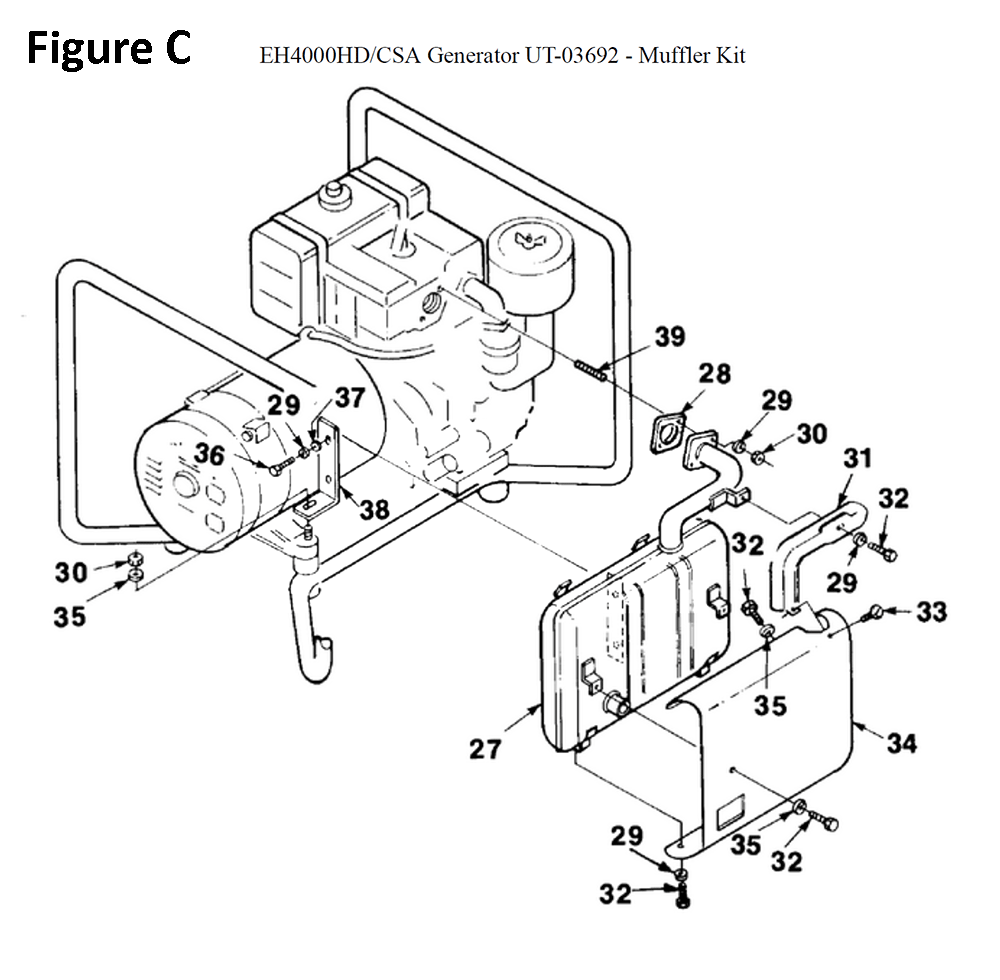

Fig-3

Reference Filter: Filter parts list by name or model number:

Homelite EH4000HD-CSA-(UT-03692) Replacement Parts List

1

Nut Part # 81015 Currently not available

N/A
2

Washer- Lock (int.) Part # 83081 Currently not available

N/A
3

Nut Part # 81162 Currently not available

N/A
4

Ground Decal Part # 49490 Currently not available

N/A
5

Screw- Cap Hex Hd. (5/16-18 X 4") Part # 82529 Currently not available

N/A
5

Screw- (5/16 X 3 1/4") Part # 82530 Currently not available

N/A
6

Washer-flat Part # 84046 Currently not available

N/A
7

Spacer- Foot Part # 49733 Currently not available

N/A
8

Foot Part # 48789 Currently not available

N/A
9

Washer *tbo* Part # 84058 Currently not available

N/A
10

Washer- Lock (int.) Part # 83081 Currently not available

N/A
11

Spacer Part # 49697 Currently not available

N/A
12

Decal- Caution Part # 49598 Currently not available

N/A
22

Bolt- Engine (rear) Part # JA400200 Currently not available

N/A
24

DECAL,178B48 Part # 49613 Currently not available

N/A
25

Member- Frame (engine) Part # 020451 Currently not available

N/A
26

Frame- Member (generator) Part # 020461 Currently not available

N/A
A-1

Screw- W/washer (use W/livington 240V Receptacle) Part # 0078216 Currently not available

N/A
A-1

Screw- W/washer (use W/g.e. 240V Receptacle) Part # 0078212 Currently not available

N/A
A-2

Screw- Mach Round Hd. Part # 80260 Currently not available

N/A
A-3

Screw-w/washer (m3 X 8mm) Part # 88170 Currently not available

N/A
A-4

End Cover Assy. Part # 0078211 Currently not available

N/A
A-5

Decal Part # 49495

$2.51
Add to Cart

In-Stock. Same Day Shipping
A-6

Cir. Breaker Part # 49802 Currently not available

N/A

Homelite EH4000HD-CSA-(UT-03692) Replacement Parts
