Buy Homelite 27AV-wcc-(UT-10827) Chain Saw Parts

Other tools in Homelite Chain Saw Parts category

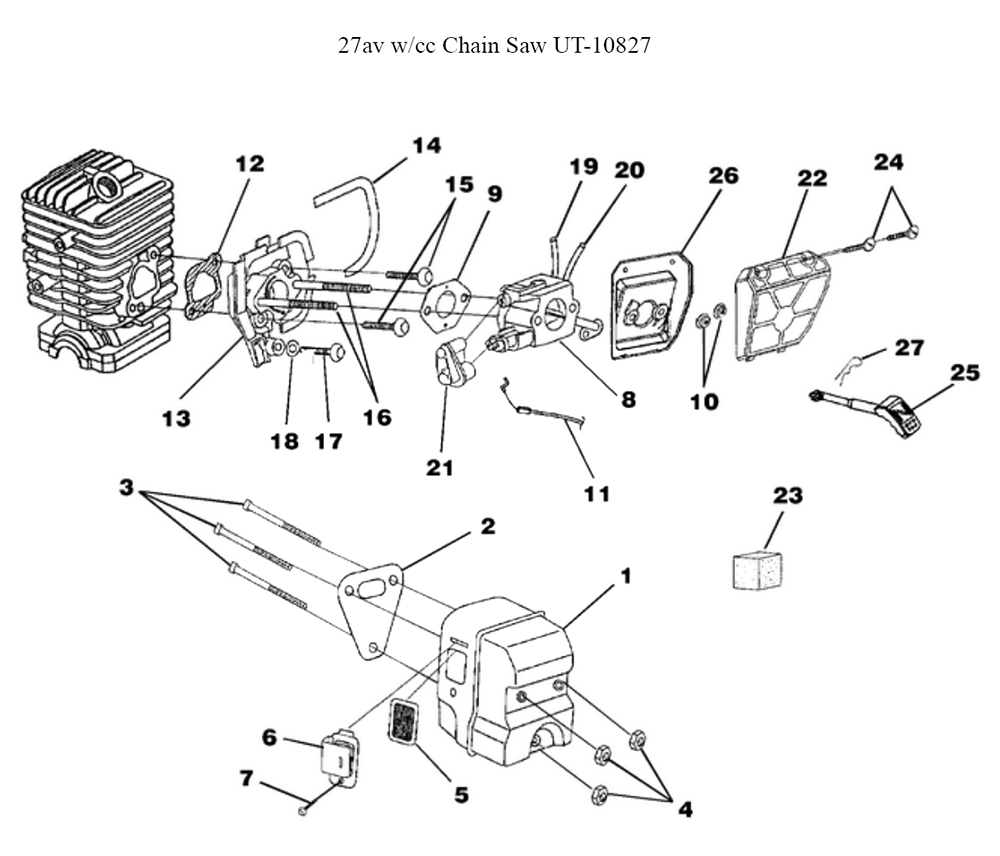

Fig-0

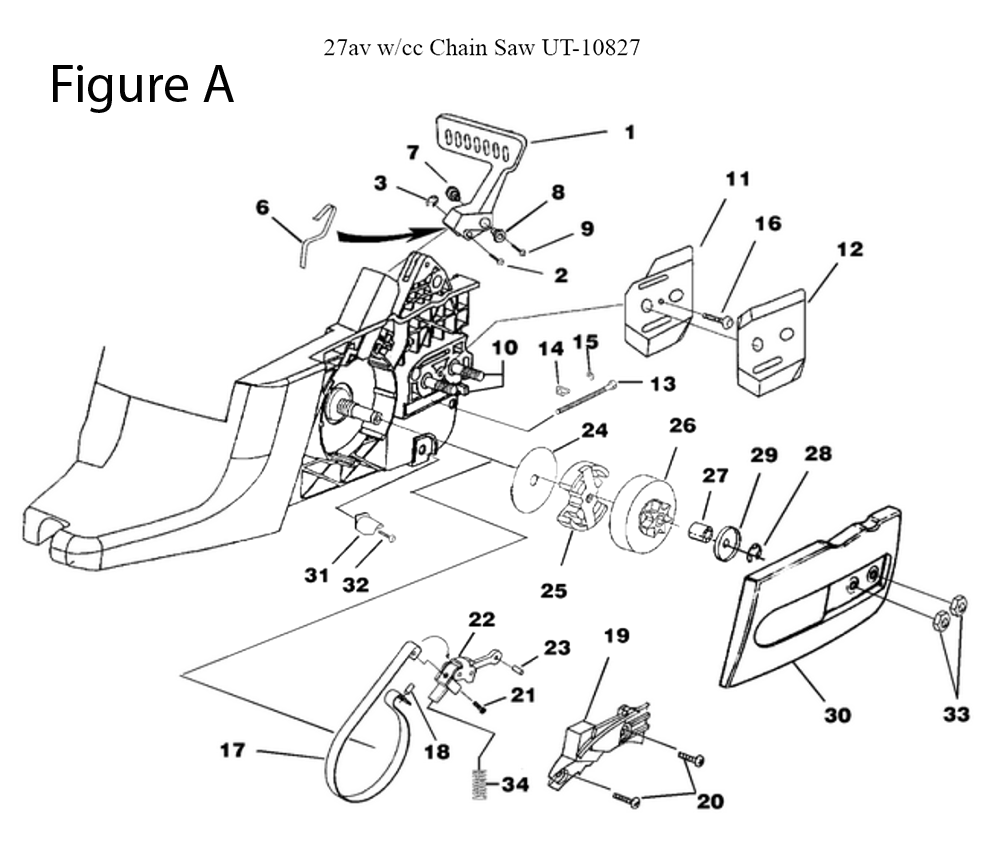

Fig-1

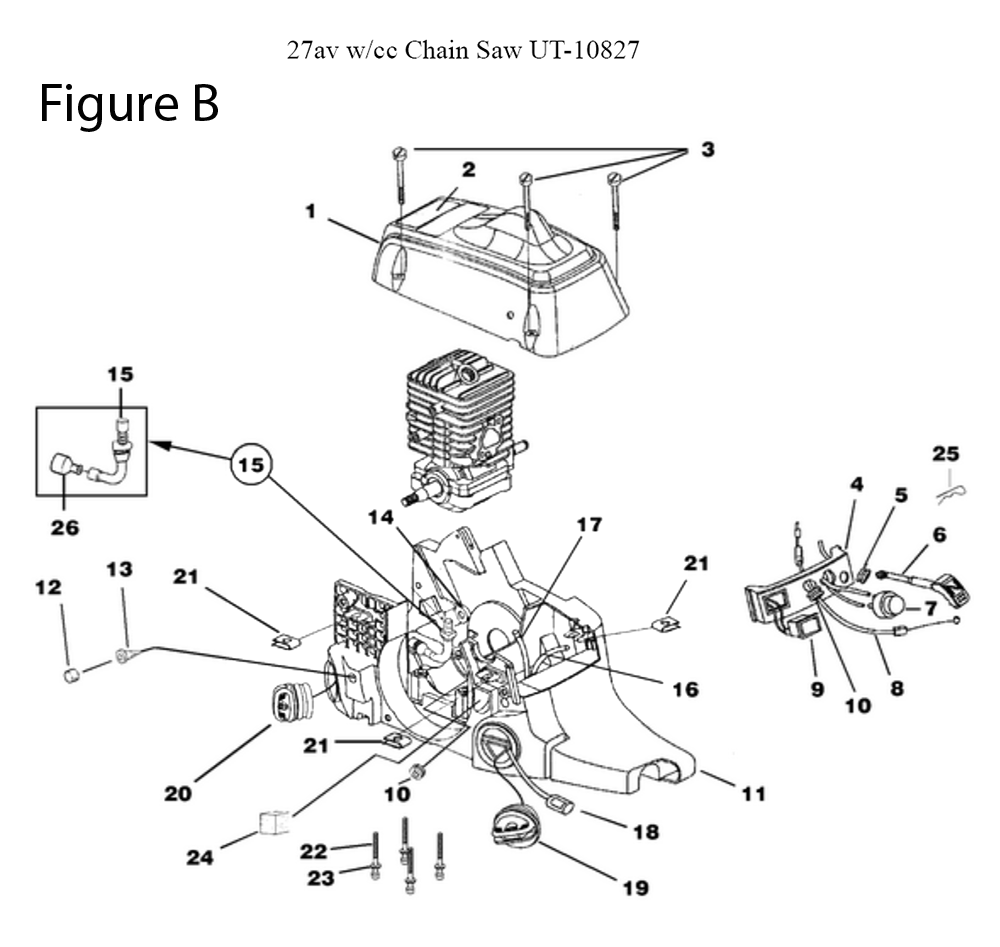

Fig-2

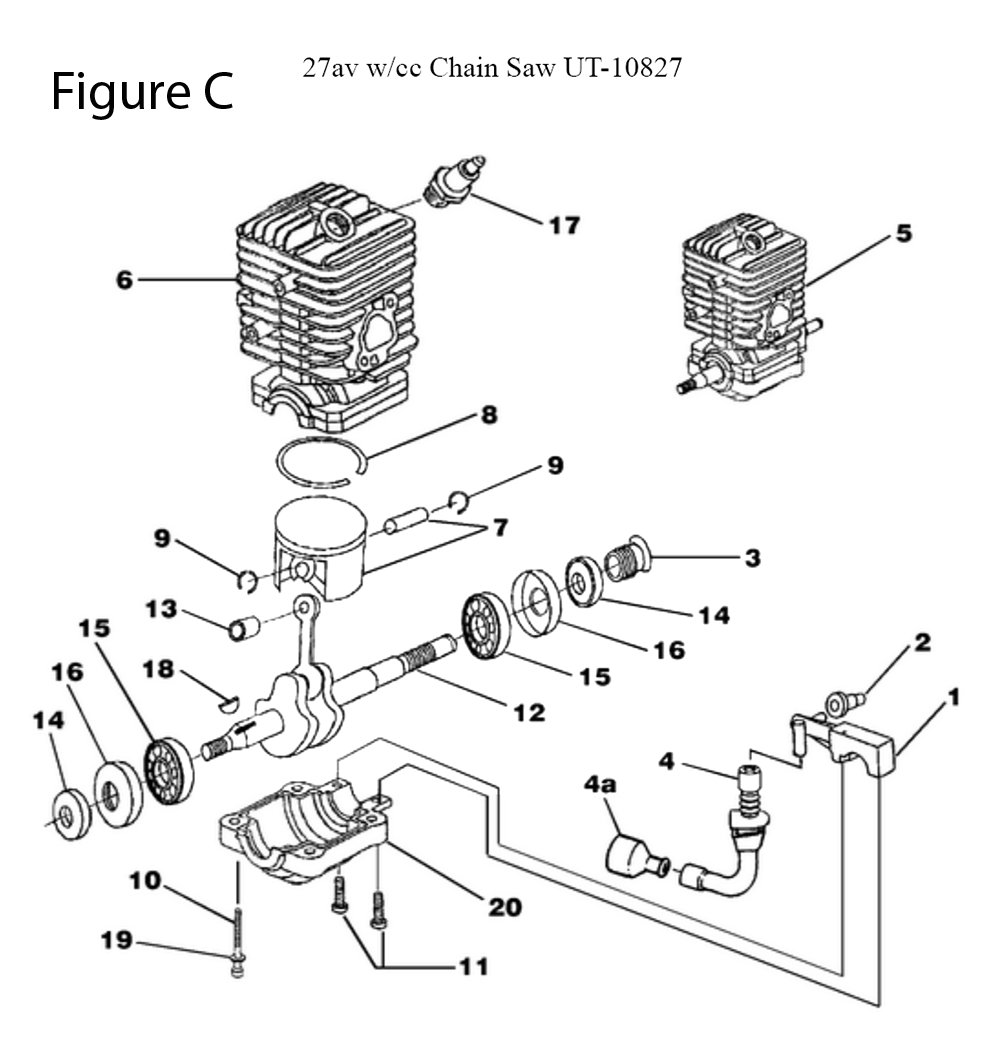

Fig-3

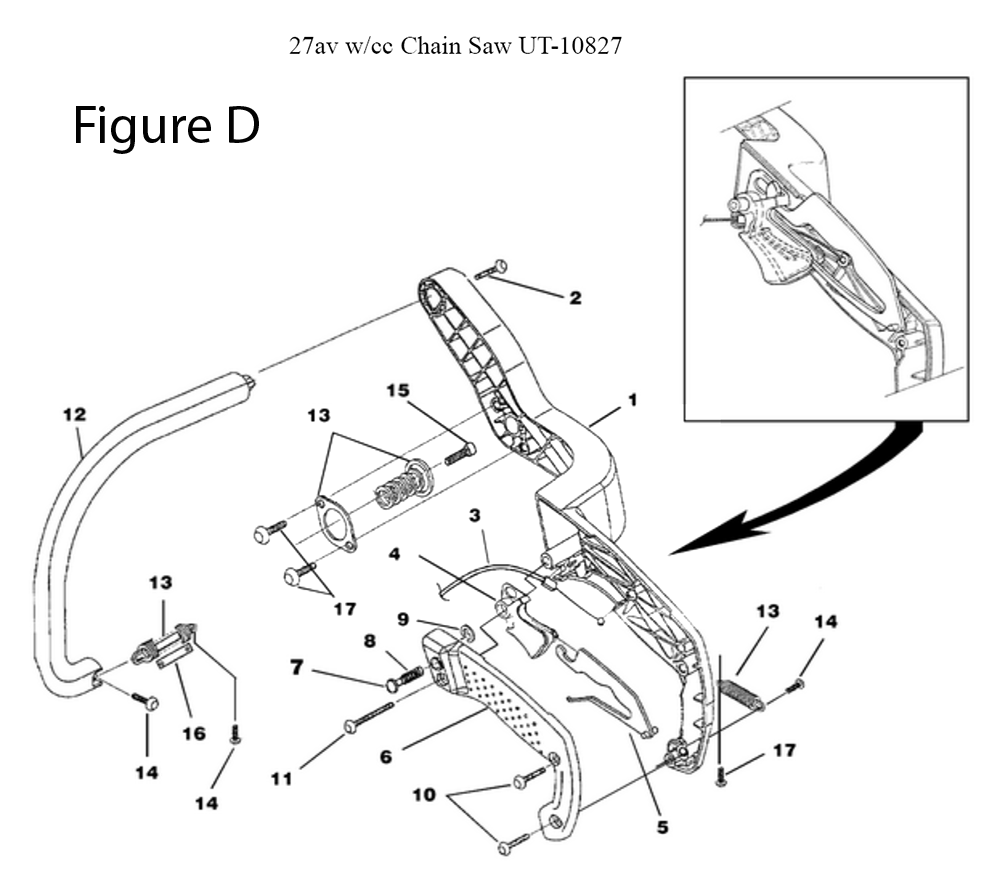

Fig-4

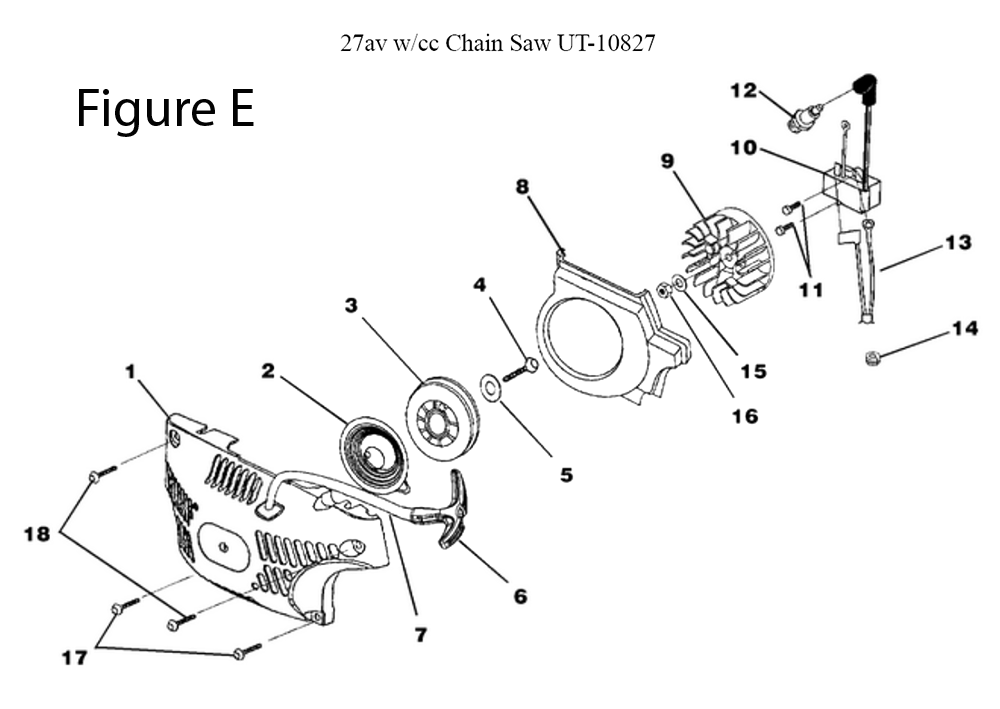

Fig-5

Reference Filter: Filter parts list by name or model number:

Homelite 27AV-wcc-(UT-10827) Replacement Parts List

E-3

Pulley, Starter Part # UP05460 Currently not available

N/A
E-4

Screw, Truss Hd. (10-14 X 5/8") Part # UP04237 Currently not available

N/A
E-5

Washer, Retaining Part # UP04089 Currently not available

N/A
E-6

Grip, Starter Part # UP04216 Currently not available

N/A
E-7

Rope, Starter 46" Part # UP03911 Currently not available

N/A
E-8

Baffle, Fan Housing Part # UP04192 Currently not available

N/A
E-9

Rotor & Starter Pawl Part # UP04242 Currently not available

N/A
E-10

Ignition Kit Part # A08676A Currently not available

N/A
E-00

Ignition Kit Part # UP05851 Currently not available

N/A
E-11

Screw, Thread Form (8-32 X 5/8") Part # UP04086 Currently not available

N/A
E-12

Spark Plug Part # UP04093 Currently not available

N/A
E-13

Ignition Switch Harness Part # UP04222 Currently not available

N/A
E-14

Grommet, Wire Harness (split) Part # UP04215 Currently not available

N/A
E-15

Washer, Flat Part # UP04241 Currently not available

N/A
E-16

Nut, Jam Part # UP04081 Currently not available

N/A
E-17

Screw, Truss Hd. (10-14 X 7/8") Part # UP04236 Currently not available

N/A
E-18

Screw, Truss Hd. (10-14 X 5/8") Part # UP04237 Currently not available

N/A
00

Guide Bar (power Tip) 12" (3/8" Pitch) Part # PT12371MD Currently not available

N/A
00

Chain 12" (3/8" Pitch) Part # H1N7245AH Currently not available

N/A
00

Guide Bar (power Tip)) 14" (3/8") Part # PT14371MD Currently not available

N/A
00

Chain 14" (3/8") Part # H1N7252AH Currently not available

N/A
00

Guide Bar (power Tip)) 16" (3/8") Part # PT16371MD Currently not available

N/A
00

Chain 16" (3/8") Part # H1N7256AH Currently not available

N/A
00

Guide Bar (power Tip)) 18" (3/8") Part # PT18371MD Currently not available

N/A

Homelite 27AV-wcc-(UT-10827) Replacement Parts
