Buy Homelite 20-wcc-(UT-10786-A) Chain Saw Parts

Other tools in Homelite Chain Saw Parts category

Fig-0

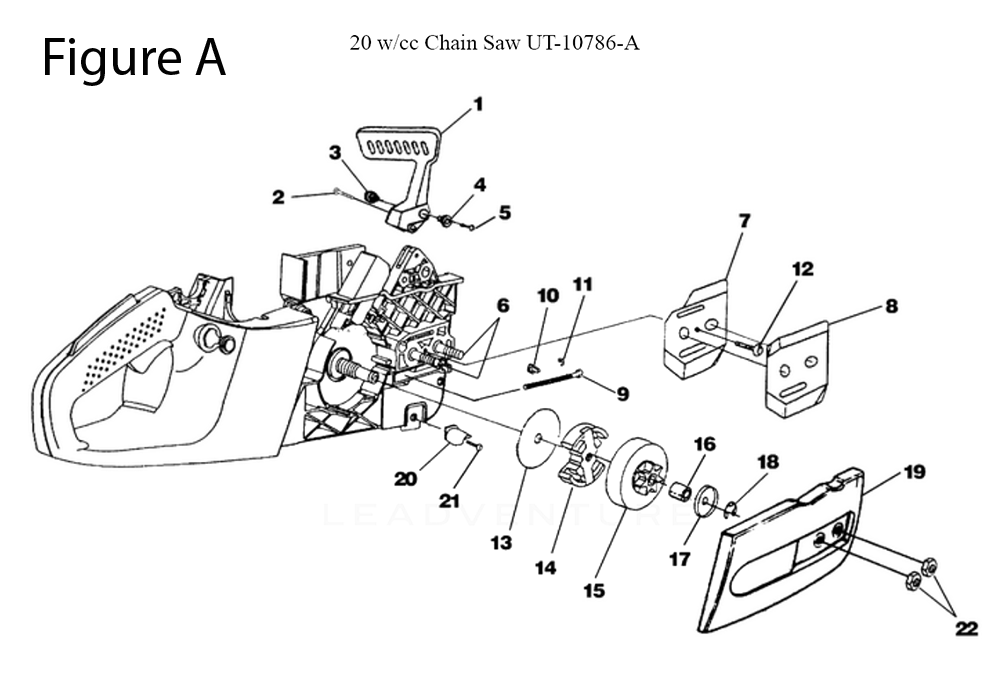

Fig-1

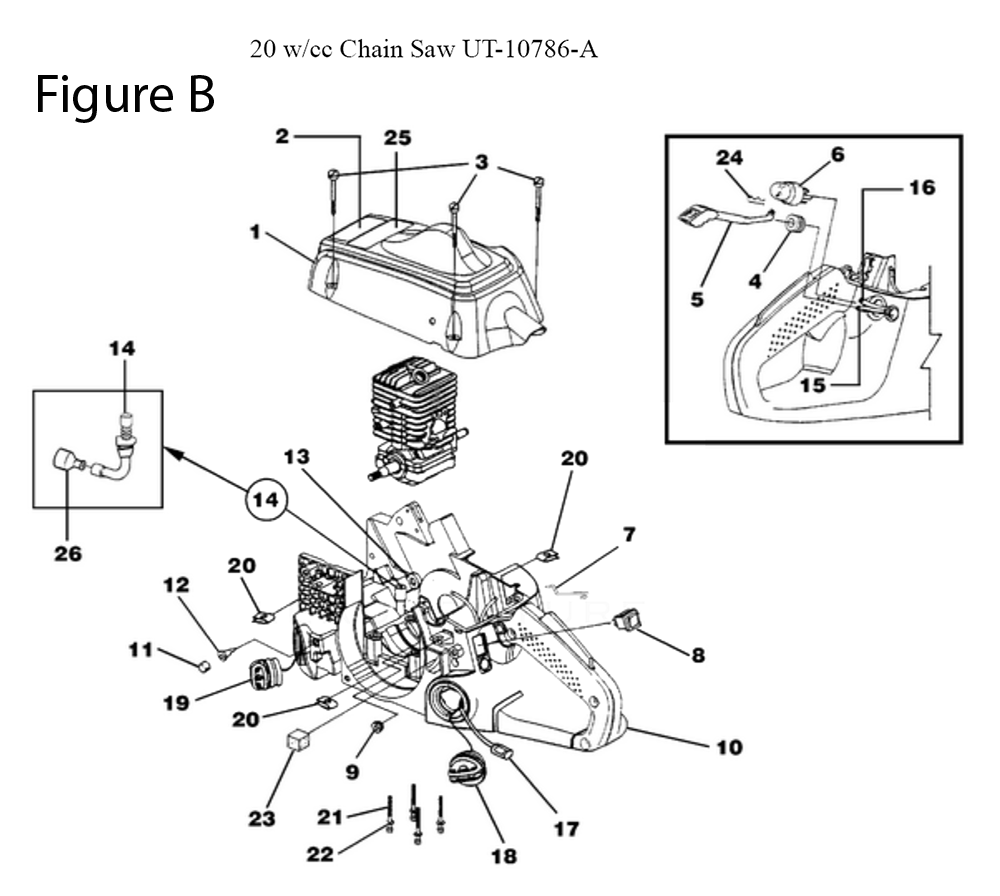

Fig-2

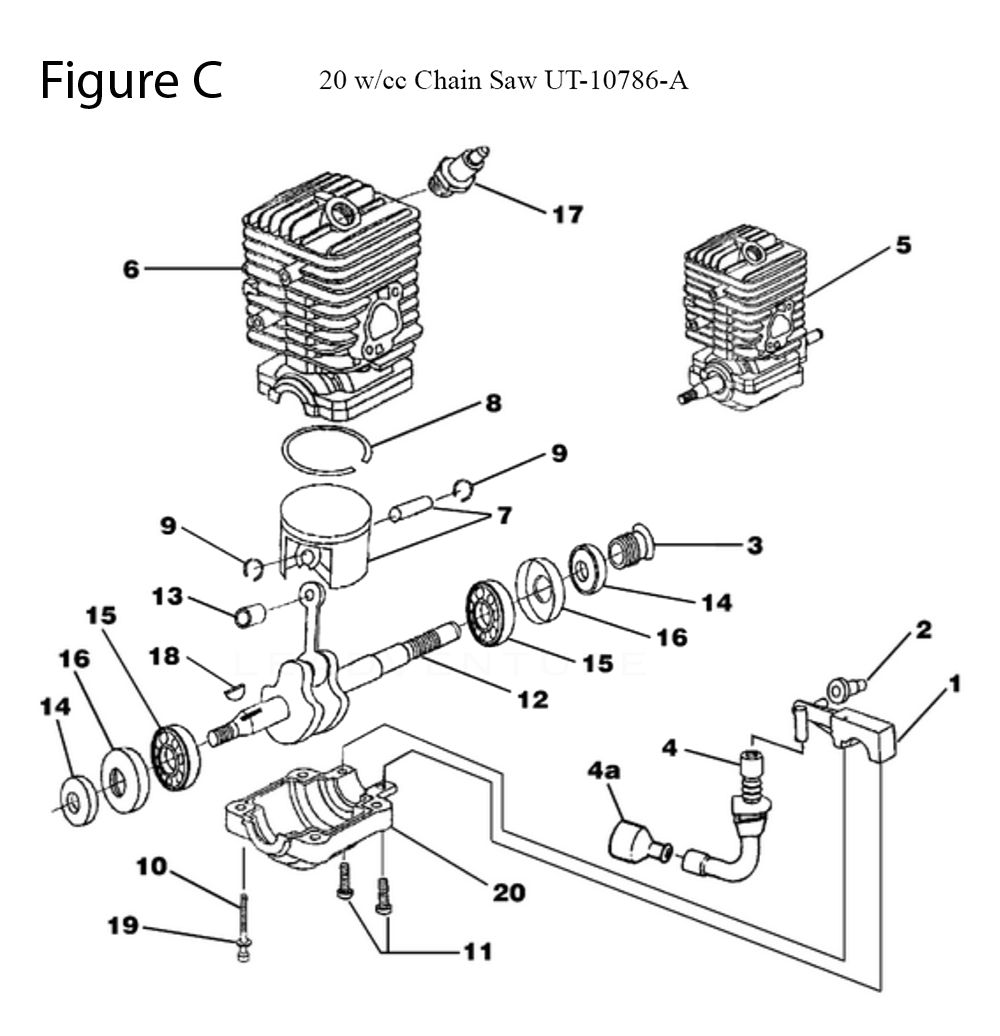

Fig-3

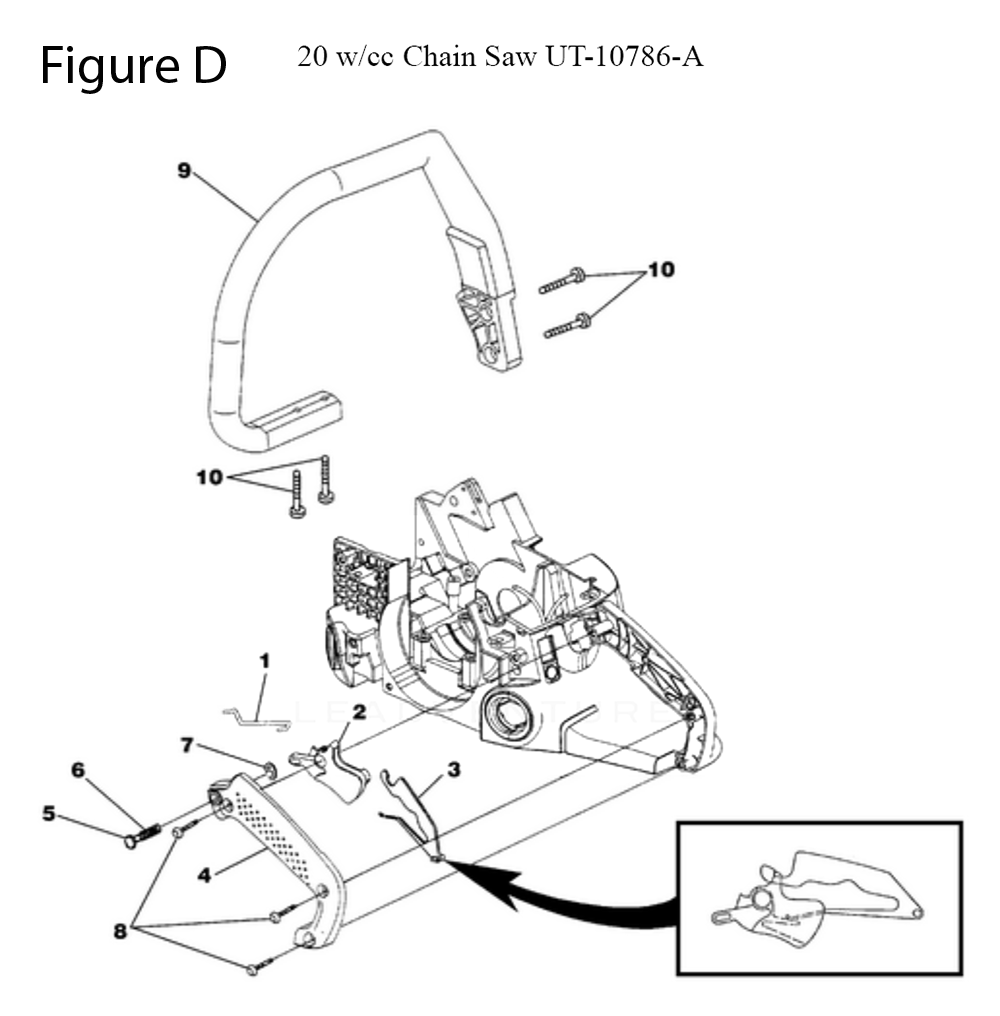

Fig-4

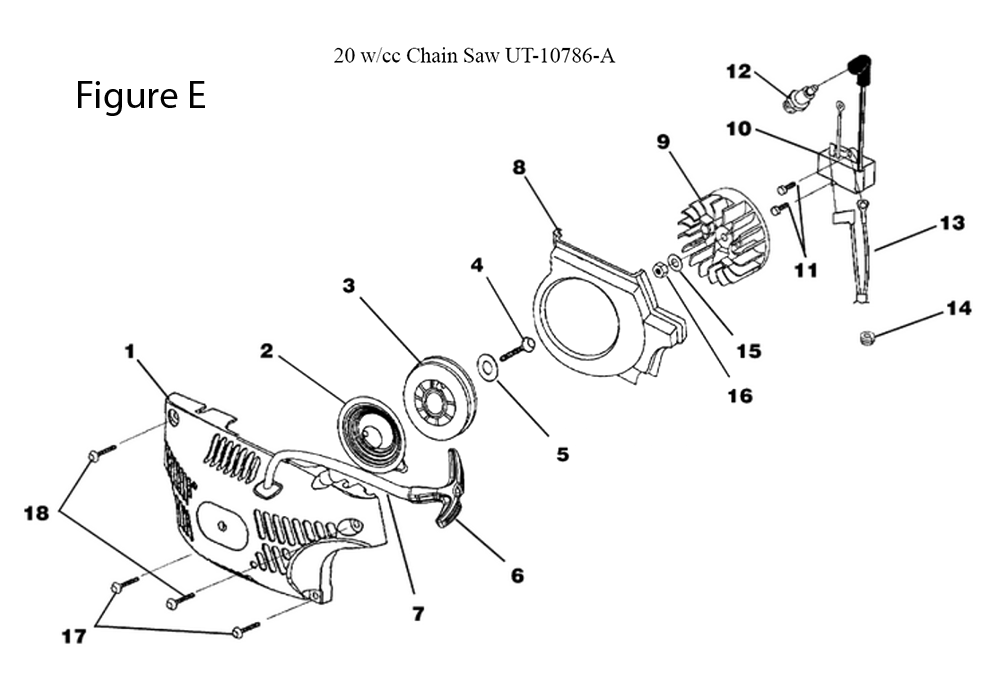

Fig-5

Reference Filter: Filter parts list by name or model number:

Homelite 20-wcc-(UT-10786-A) Replacement Parts List

A-2

Screw, Pan Hd., Plastite (8-16 X 5/8") Part # UP03898 Currently not available

N/A
A-3

Pivot, L.h. Part # UP04202 Currently not available

N/A
A-4

Pivot, R.h. Part # UP04201 Currently not available

N/A
A-5

Screw, Hex Socket Hd. (8-32 X 5/8") Part # UP04240 Currently not available

N/A
A-6

Guide Bar Bolt Part # UP04180 Currently not available

N/A
A-00

Guide Bar Adjusting Kit Part # UP06966 Currently not available

N/A
A-7

Plate, Guide Bar Part # UP04206 Currently not available

N/A
A-8

Plate, Guide Bar Part # UP04085 Currently not available

N/A
A-9

Screw, Guide Bar Adjusting Part # UP04187 Currently not available

N/A
A-10

Pin, Guide Bar Adjusting Part # UP04186 Currently not available

N/A
A-11

Ring, Retaining Part # UP04056 Currently not available

N/A
A-12

Screw, Thread Form (6-19 X 1/2") Part # UP04082 Currently not available

N/A
A-13

Thrust Washer Part # UP04182 Currently not available

N/A
A-14

Clutch & Hardware Part # UP06727 Currently not available

N/A
A-15

Sprocket, Drum (3/8 Pitch) Part # UP06967 Currently not available

N/A
A-16

Bearing, Needle Part # UP04175 Currently not available

N/A
A-17

Washer, Cupped Part # UP04179 Currently not available

N/A
A-18

Ring, Retaining Part # UP04228 Currently not available

N/A
A-19

Drive Case Cover Part # UP06975 Currently not available

N/A
A-20

Stop, Chain Part # UP04088 Currently not available

N/A
A-21

Screw, Thread Form., Plastite (10-14 X 3/4") Part # UP03900 Currently not available

N/A
A-22

Nut, Hex Part # UP04058 Currently not available

N/A
B-1

Cylinder Cover Kit Part # A09162 Currently not available

N/A
B-2

Safety Decal Part # UP04212 Currently not available

N/A
